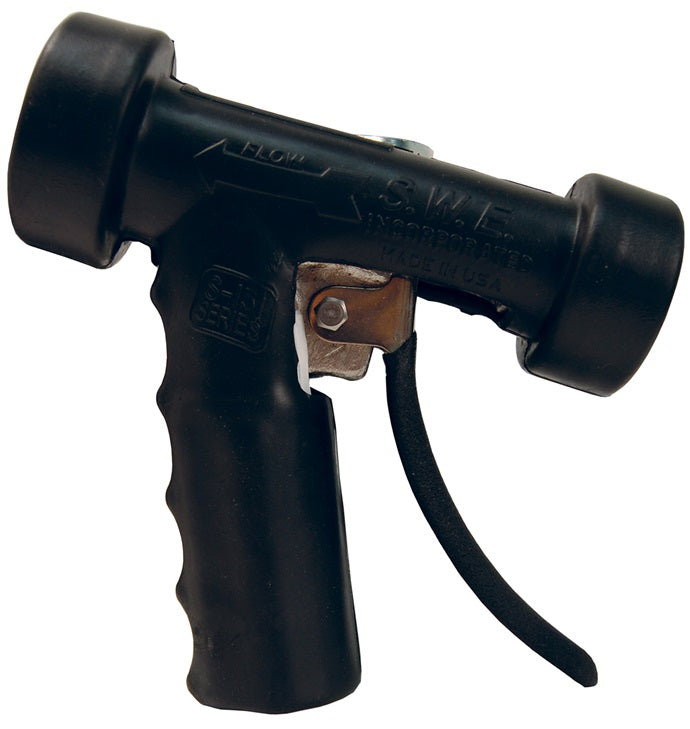

AWSG-TG by Dixon Valve | Thermal-Gard Elevated Temperature Spray Nozzle | Aluminum

AWSG-TG by Dixon Valve | Thermal-Gard Elevated Temperature Spray Nozzle | Aluminum

Sale price$293.94

Dixon Valve
Thermal-Gard Elevated Temperature Spray Nozzle

Thermal-Gard elevated temperature spray nozzle protects the operator from extreme hot water temperatures that exceed the comfort zone of standard hot water nozzles.
Buy More, Save More!
Quantity Price Each
5–14 $276.30
15–29 $249.85
30+ $220.46
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Aluminum
Features:
  • Thermal insulating sleeve reduces overall heat during elevated temperature conditions..
  • Assembly includes required special rigid, stainless steel adapter, (3/8" male NPT x 1/2" female NPT).
Construction:
  • Stainless steel lever handle is coated for additional thermal protection and operator comfort.
  • Lightweight aluminum alloy body reduces overall weight.
  • Aluminum alloy body is electroless nickel plated for additional corrosion protection.
  • 3/8" female NPT inlet.
  • Black cover.
Specifications:
  • Recommended for water temperatures above 140 °F (60 °C) to a maximum temperature of 200 °F (93 °C).
  • 12.5 GPM flow capacity.
  • Working pressure: 150 PSI.
Part Number Description
AWSG-TG Thermal-Gard Elevated Temperature Spray Nozzle

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
