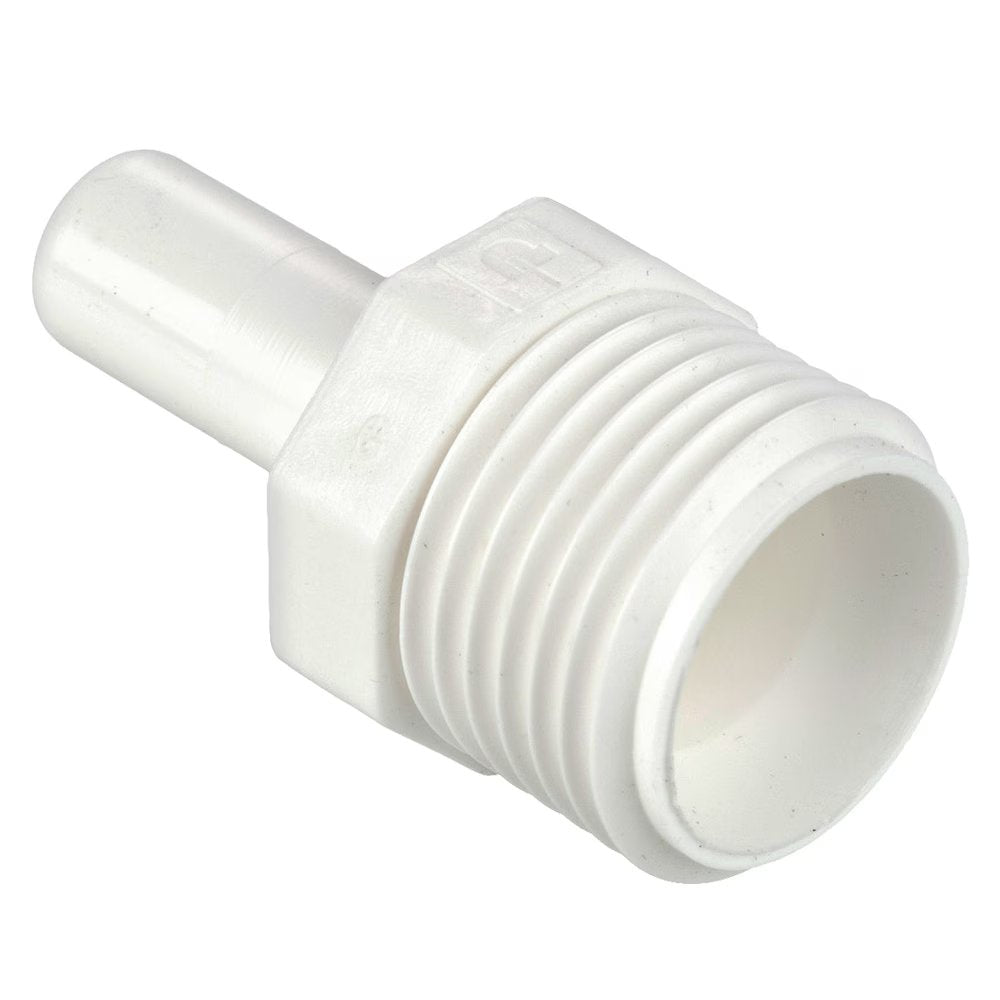

AW6TAF7-MG by Parker | TrueSeal™ Accessories | 3/8" Tube Faucet Adapter x 7/16-24" Male Thread | 1.41" Length | Straight | White | Acetal

AW6TAF7-MG by Parker | TrueSeal™ Accessories | 3/8" Tube Faucet Adapter x 7/16-24" Male Thread | 1.41" Length | Straight | White | Acetal

Minimum Order Quantity: 10 Units

Sale price$1.25

by Parker Hannifin
TrueSeal™ Fittings:TAF - Tube Faucet Adapter
Buy More, Save More!
Quantity Price Each
20–39 $1.18
40–79 $1.06
80+ $0.94
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • TAF Series
Shape:

Straight
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

White Acetal Tube Stem O.D. Thread Size A Hex (C) D (Min)
AW6TAF7-MG 3/8" 7/16-24" 1.25" .69" .17"
AW6TAF8-MG 3/8" 1/2-14" NPSM 1.45" 1.06" .22"
AW6TAF9-MG 3/8" 9/16-24" 1.25" .75" .22"
