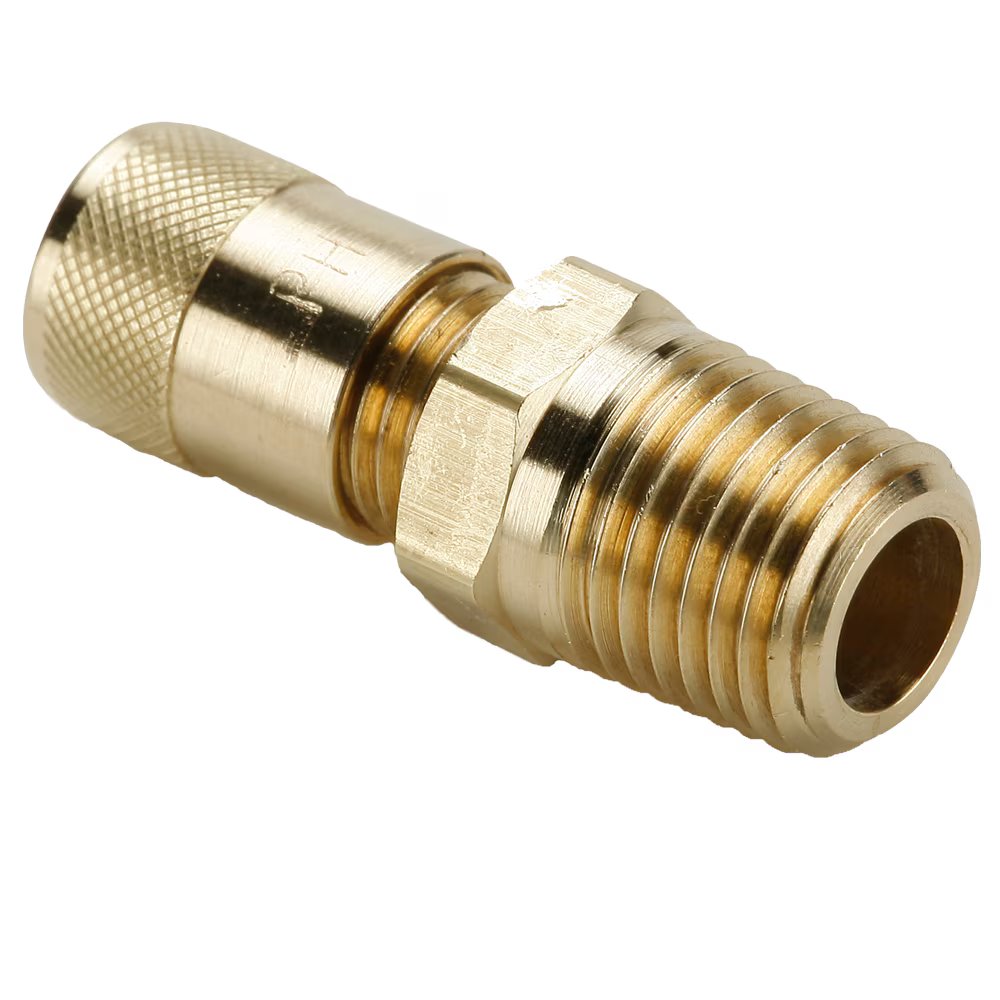

AVU1-4 by Parker | Access Valve | Connector | 1/4" Male Pipe or 5/16" O.D. Solder | Straight | Brass | Pack of 5

AVU1-4 by Parker | Access Valve | Connector | 1/4" Male Pipe or 5/16" O.D. Solder | Straight | Brass | Pack of 5

Sale price$45.13

by Parker Hannifin
Access Valves:Male Connector AVU1

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
10–39 $42.42
40–79 $38.36
80+ $33.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • AVU1 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male NPSM
  • 5/16in Solder End
Product Features:
  • All brass construction
  • 1/4” SAE male flare access ports
  • Finger tight quick seal caps
  • Access valves with pipe connections have internal ODS solder cups
Markets:
  • Refrigeration
  • Air Conditioning
Applications:
  • Pressure Testing
  • Purging
  • Charging Refrigeration Lines
Specification:
Temperature Range: -20° to +220° F (-28.8° to +104.4° C)
Pressure Range: Up to 500 PSI (34.3 bar)
Compatible Tubing:
  • Copper
Part Number Tube Size
AVU1-2 1/8"
AVU1-4 1/4"

Product comes with valve core loose and should be torqued after brazing to ARI 720 standard.
