ATSC6-MG by Parker | TrueSeal™ Accessories | 3/8" Cartridge Insert | Acetal | Pack of 50
by Parker Hannifin
TrueSeal™ Cartridge Inserts:TSC - Cartridge Insert
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $49.32 |
| 40–79 | $44.60 |
| 80+ | $39.35 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:

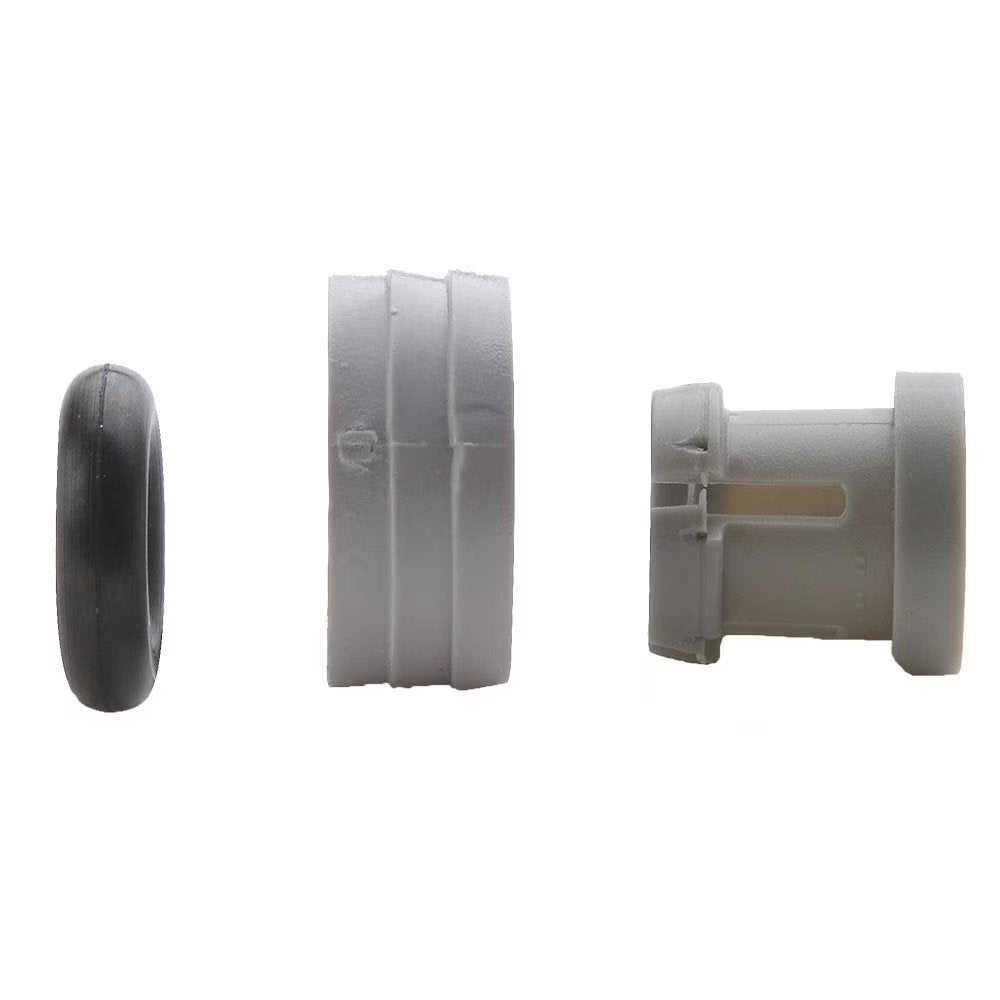

| Parker TrueSeal™ Cartridge Inserts: |
Allow you to machine or mold a tube connection into
your equipment or components. By using cartridge
inserts, you will reduce your material and assembly
costs, reduce potential leak paths, and give your
equipment a new, clean profile by eliminating the
need for threaded connections. TSC Cartridge Inserts
consist of 1 O-ring, 1 cartridge, and 1 collet. *Cartridge inserts are rated at 150 PSI in ports dimensioned as above and having Noryl as the receiving material. Other materials may have different ratings and require different port dimensions. Consult the Fluid System Connectors Division when using polypropylene, unfilled polypropylene, ABS or Nylon. |
||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number with EPDM Seal | Nom. Tube O.D. | A Diameter ±002 | B Diameter ±003 | C Diameter ±003 | D Diameter Maximum | E Depth ±002 | F Depth ±002 | G Depth ±002 | H Centerline of Ports Minimum |
| ATSC4-MG | 1/4" | .528" | .421" | .260" | .19" | .230" | .435" | .600" | .670" |
| ATSC6-MG | 3/8" | .632" | .545" | .385" | .31" | .280" | .455" | .705" | .790" |
| ATSC8-MG | 1/2" | .774" | .668" | .510" | .41" | .315" | .510" | .810" | 1.250" |
