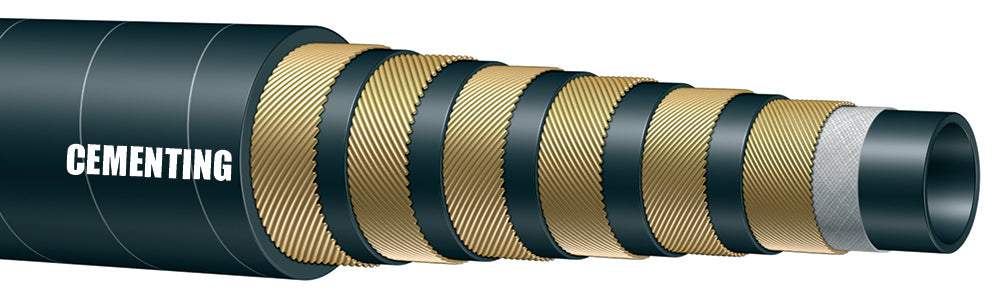

AT10KOC-32 Alfagomma by Kuriyama | AT10KOC Series | SUPERTUFF Flexor Rig Oilwell Cementing Hose | 6-Spiral Wire | 2" ID | 2.83" OD | 10,000 PSI | 200ft Length
Kuriyama of America Inc.
Alfagomma | SUPERTUFF Flexor Rig Oilwell Cementing Hose | 6-Spiral Wire
For very high pressure hydraulic lines.
Special compact construction designed to operate at tight bend radius in demanding applications. Specially designed for oil well cementing.
Package Quantity: 200 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $13,304.07 |
| 6+ | $12,737.94 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
10000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
| Application: | Very high pressure hydraulic lines. Also suitable for fuel oil, anti-freeze solutions, air and water. Specially designed for oil well cementing. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | MSHA IC-152/25 approved flame resistance | Tube: | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Reinforcement: | Six high tensile steel spirals. | Cover: | Abrasion, ozone and hydrocarbon resistant synthetic rubber: Special "SUPERTUFF" cover for excellent abrasion resistance and long service life in heavy duty applications. |
| Service Temperature Range: | -40°F (-40°C) to +250°F (+121°C) | Ambient Temperature: | - |
| Branding: | ALFAGOMMA Flexor Rig Oilwell Cementing 10K MSHA IC- 152/25 - MADE IN ITALY | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| AT10KOC-32 | 2" | 50.8mm | 2.83" | 71.9mm | 10,000 PSI | 25.5" | 647.7mm | 4.37 lbs/ft |
* 2.5-to-1 Minimum Burst Pressure Rating.
