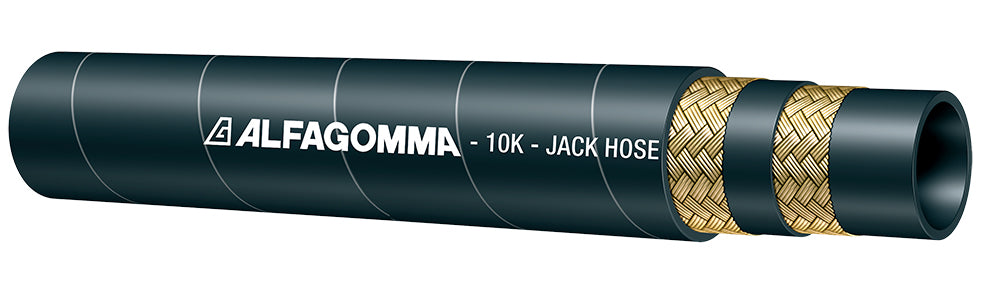

AT10KJ-04 Alfagomma by Kuriyama | AT10KJ Series | 2-Wire Braid | Jack Hose | 1/4" ID | 0.51" OD | 10,000 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Static pressure hydraulic lines. Fuel oil, antifreeze solutions, air and water. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking equipment. | Tube: | Oil-resistant synthetic rubber. |
| Reinforcement: | Two high tensile steel braids. | Cover: | Abrasion, ozone and hydrocarbon resistant smooth synthetic rubber. |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) constant operation | Air Maximum Temperature: | - |
| Branding: | Alfagomma - Italy - 10K Jack Hose - size WP 10,000 psi (70 Mpa) MSHA IC-152/16 | ||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| AT10KJ-04 | 1/4" | 6.4mm | 0.51" | 13.0mm | 10000 | 2.0" | 50.8mm | 0.18 lbs/ft |
| AT10KJ-06 | 3/8" | 9.5mm | 0.66" | 18.8mm | 10000 | 2.2" | 55.9mm | 0.26 lbs/ft |
* Minimum burst pressure 2-to-1 safety factor.
