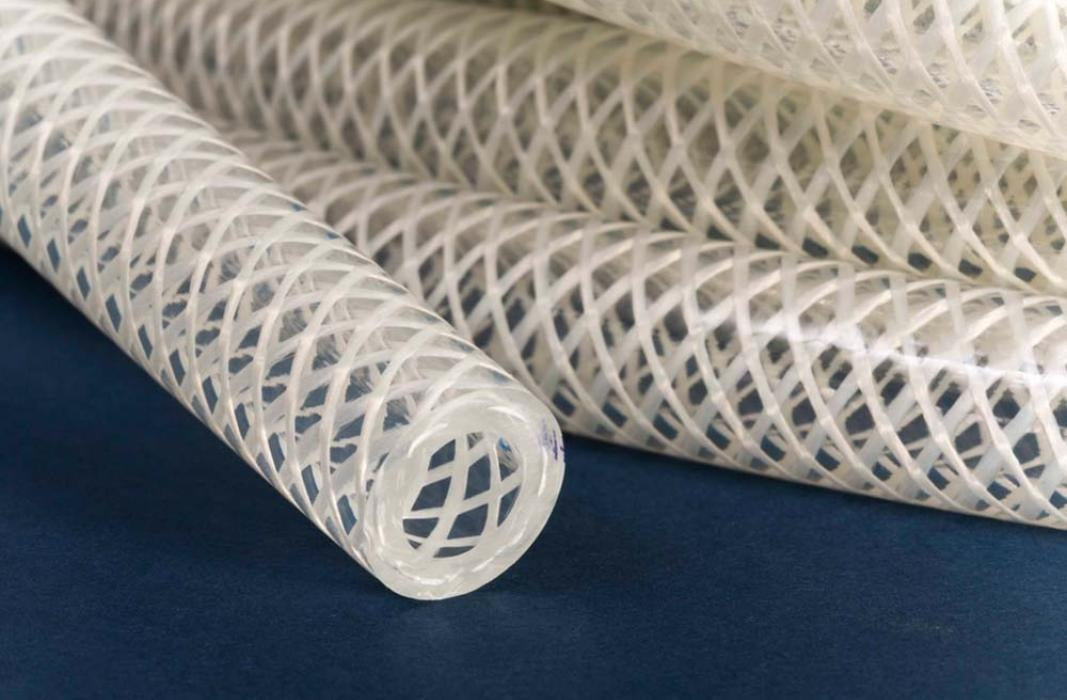

Tygon® 2375 IB | Reinforced High Pressure Chemical Transfer Metric Tubing
Tygon® 2375 IB tubing offers excellent chemical resistance and flexibility for transferring harsh chemicals, sanitizers, cleaners, and solvents. Its polyester braid reinforcement provides full vacuum capability, making it ideal for suction and delivery applications. Made without plasticizers, the clear, flexible tubing helps maintain fluid integrity in sensitive chemical transfer systems.
1
What is this product used for?
- Detergent transfer for laundry
- Dishwashing cleaning chemical transfer lines
- Warewashing cleaning chemical transfer lines
- Car washing equipment chemical transfer lines
- Harsh chemical transfer
- Solvent transfers
2
What are the key specifications?
Plasticizer-Free Polymer
Plasticizer-Free Polymer
Polyester Braid
Clear
130°F (54°C)
-103°F (-75°C)
REACH and RoHS Compliant
Not intended as an implant material!
3
What are the main product features?
- Outstanding chemical resistance.
- Non-DEHP.
- Plasticizer-free - Extends tubing life and reduces maintenance costs over plasticized products.
- Braid reinforcement for elevated working pressures.
- Safer disposal - Releases no harmful and corrosive hydrogen chloride gas.
- Smooth inner surface - Provides better flow and inhibits particulate buildup.
- Clear tubing for easier and better observation.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter |
Outside Diameter |
Wall Thickness |
Min. Bend Radius |
Max. Working Pressure at 73 deg. F |
Vaccum Pressure Rating at 73 deg. F |
Length | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | mm | in | mm | in | bar | PSI | mmHg | inHg | m | ft | |
| APC1S1542 | 6mm | 0.236" | 12mm | 0.472" | 3mm | 0.118" | 25.4mm | 1" | 15.5 bar | 225 PSI | 760 mmHg | 29.9 inHG | 15M | 49.2ft |
| APC1S2138 | 10mm | 0.394" | 16mm | 0.630" | 3mm | 0.118" | 50.8mm | 2" | 11.7 bar | 170 PSI | 760 mmHg | 29.9 inHG | 15M | 49.2ft |
| APC1S2480 | 12mm | 0.472" | 18mm | 0.709" | 3mm | 0.118" | 95.25mm | 3.75" | 13.1 bar | 190 PSI | 760 mmHg | 29.9 inHG | 15M | 49.2ft |
| APC1S2481 | 16mm | 0.630" | 22mm | 0.866" | 3mm | 0.118" | 101.6mm | 4" | 11.3 bar | 165 PSI | 760 mmHg | 29.9 inHG | 15M | 49.2ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® 2375 IB Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
