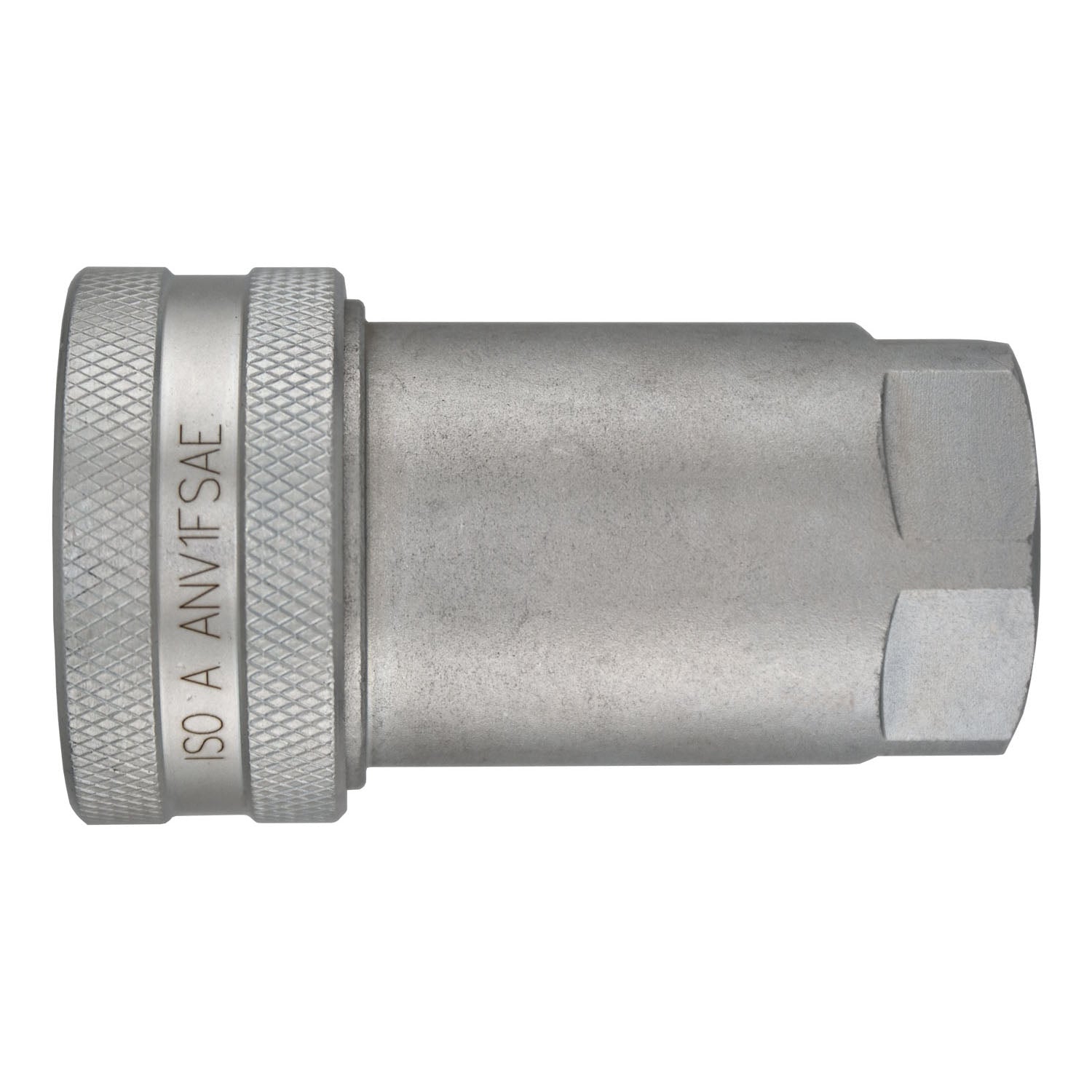

ANV14FSAE by Midland | Hydraulic Quick Disconnect | ISO-A Socket | 1/4" Body Size x 1/4" Female SAE O-Ring Boss | Steel
Midland Industries
Hydraulic Quick Disconnects: ISO-A Female SAE ORB Socket - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.45 |
| 40–79 | $10.35 |
| 80+ | $9.14 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| ISO 7241-1 ISO-A Interchange ( Connected ) Steel Coupler/ Plug |
||||
|---|---|---|---|---|
| Body Size | Maximum Working | Burst | ||
| PSI | Bar | PSI | Bar | |
| 1/4" | 5,000 PSI | 345 Bar | 18,270 PSI | 1,200 Bar |
| 3/8" | 4,000 PSI | 275 Bar | 18,270 PSI | 1,200 Bar |
| 1/2" | 4,000 PSI | 275 Bar | 16,500 PSI | 1,100 Bar |
| 3/4" | 4,000 PSI | 275 Bar | 14,800 PSI | 1,000 Bar |
| 1" | 4,000 PSI | 275 Bar | 12,400 PSI | 850 Bar |
| 1-1/4" | 3,000 PSI | 200 Bar | 12,600 PSI | 850 Bar |
| 1-1/2" | 3,000 PSI | 200 Bar | 12,600 PSI | 850 Bar |
| 2" | 1,450 PSI | 100 Bar | 5,800 PSI | 400 Bar |
