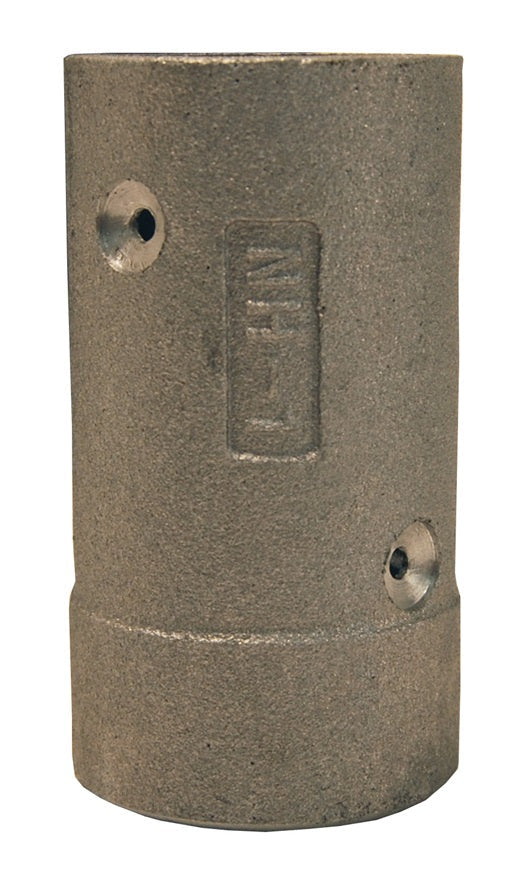

ANH75 by Dixon Valve | Sand Blast Coupling | Nozzle Holder | 3/4" Hose Size | 1-1/2" Hose OD | Aluminum

ANH75 by Dixon Valve | Sand Blast Coupling | Nozzle Holder | 3/4" Hose Size | 1-1/2" Hose OD | Aluminum

Sale price$36.61

Dixon Valve
Sand Blast Coupling | Nozzle Holder

Sand blast couplings are designed for use on sand blast hose.
Buy More, Save More!
Quantity Price Each
10–39 $34.41
40–79 $31.12
80+ $27.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Aluminum
Features:
  • Designed for use on sand blast hose.
  • Supplied with screws.
  • Nozzle holders have 1-1/4" NPSM thread.
  • Abrasive blasting equipment must have hose safety cables or hose coupling safety locks installed to read safety clips.
Specifications:
  • Pressure: 110 PSI at ambient temperature 70°F (21°C).
Installation:
  • 1) Ends of hose must be cut square to fit snug against metal end.
  • 2) Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180° from first to ensure best centering.
  • 3) After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through.
  • 4) On quick couplings, insert safety clips.
Brass
Part Number		 Aluminum
Part Number		 Hose Size Hose O.D.
BNH75 ANH75 3/4" 1-1/2"
BNH100 ANH100 1" 1-7/8"
BNH125 ANH125 1-1/4" 2-5/32"
BNH150 ASB150 1-1/2" 2-3/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
