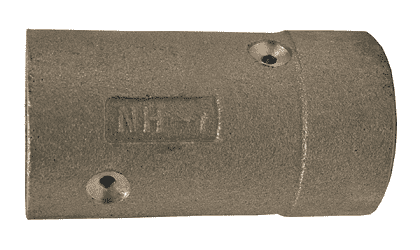

ANH100 Dixon Valve Aluminum Sand Blast Nozzle Holder - 1" x 1-7/8"
Dixon

ANH100 Dixon Valve Aluminum Sand Blast Nozzle Holder - 1" x 1-7/8"

Sale price$43.19

Sand Blast Couplings. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F.

In stock

Product Data:

Shape:

Straight

Material(s):
  • Aluminum
Features:
  • Nozzle Holder
  • Sand blast couplings are designed for use on sand blast hose.
  • Supplied with screws.
  • Nozzle holders have 1-1/4" NPSM thread.
  • Rated to 110 PSI at ambient temperature (70 Deg. F).
  • Abrasive blasting equipment must have hose safety cables or hose coupling safety locks.
  • Installation:
  • Ends of hose must be cut square to fit snug against metal end.
  • Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180 Deg. from first to ensure best centering.
  • After all screws have been placed, check tube oppositescrews to be sure screws have not penetrated completely through.
  • On quick couplings, insert safety clips.
Part Number Hose Size Hose OD Material PSI Weight (Lbs)
BNH75 3/4" 1-1/2" Brass 110 (7.48 bar) 0.6400
BNH100 1" 1-7/8" Brass 110 (7.48 bar) 0.9000
BNH125 1-1/4" 2-5/32" Brass 110 (7.48 bar) 1.6500
BNH150 1-1/2" 2-3/8" Brass 110 (7.48 bar) 2.9200
ANH75 3/4" 1-1/2" Aluminum 110 (7.48 bar) 0.2750
ANH100 1" 1-7/8" Aluminum 110 (7.48 bar) 0.3700
ANH125 1-1/4" 2-5/32" Aluminum 110 (7.48 bar) 0.5000
ANH150 1-1/2" 2-3/8" Aluminum 110 (7.48 bar) 0.7100
