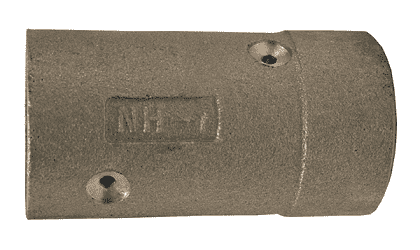

ANH150 Dixon Valve Aluminum Sand Blast Nozzle Holder - 1-1/2" x 2-3/8"

ANH150 Dixon Valve Aluminum Sand Blast Nozzle Holder - 1-1/2" x 2-3/8"

Sale price$62.08
Quantity Price Each
50–99 $55.87
100+ $49.66
Discounts applied at checkout.

Sand Blast Couplings. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F.

In stock

Product Data:

Shape:

Straight

Material(s):
  • Aluminum
Features:
  • Nozzle Holder
  • Sand blast couplings are designed for use on sand blast hose.
  • Supplied with screws.
  • Nozzle holders have 1-1/4" NPSM thread.
  • Rated to 110 PSI at ambient temperature (70 Deg. F).
  • Abrasive blasting equipment must have hose safety cables or hose coupling safety locks.
    • Installation:
  • Ends of hose must be cut square to fit snug against metal end.
  • Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180 Deg. from first to ensure best centering.
  • After all screws have been placed, check tube oppositescrews to be sure screws have not penetrated completely through.
  • On quick couplings, insert safety clips.
Part Number Hose Size Hose OD Material PSI Weight (Lbs)
BNH75 3/4" 1-1/2" Brass 110 (7.48 bar) 0.6400
BNH100 1" 1-7/8" Brass 110 (7.48 bar) 0.9000
BNH125 1-1/4" 2-5/32" Brass 110 (7.48 bar) 1.6500
BNH150 1-1/2" 2-3/8" Brass 110 (7.48 bar) 2.9200
ANH75 3/4" 1-1/2" Aluminum 110 (7.48 bar) 0.2750
ANH100 1" 1-7/8" Aluminum 110 (7.48 bar) 0.3700
ANH125 1-1/4" 2-5/32" Aluminum 110 (7.48 bar) 0.5000
ANH150 1-1/2" 2-3/8" Aluminum 110 (7.48 bar) 0.7100

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
