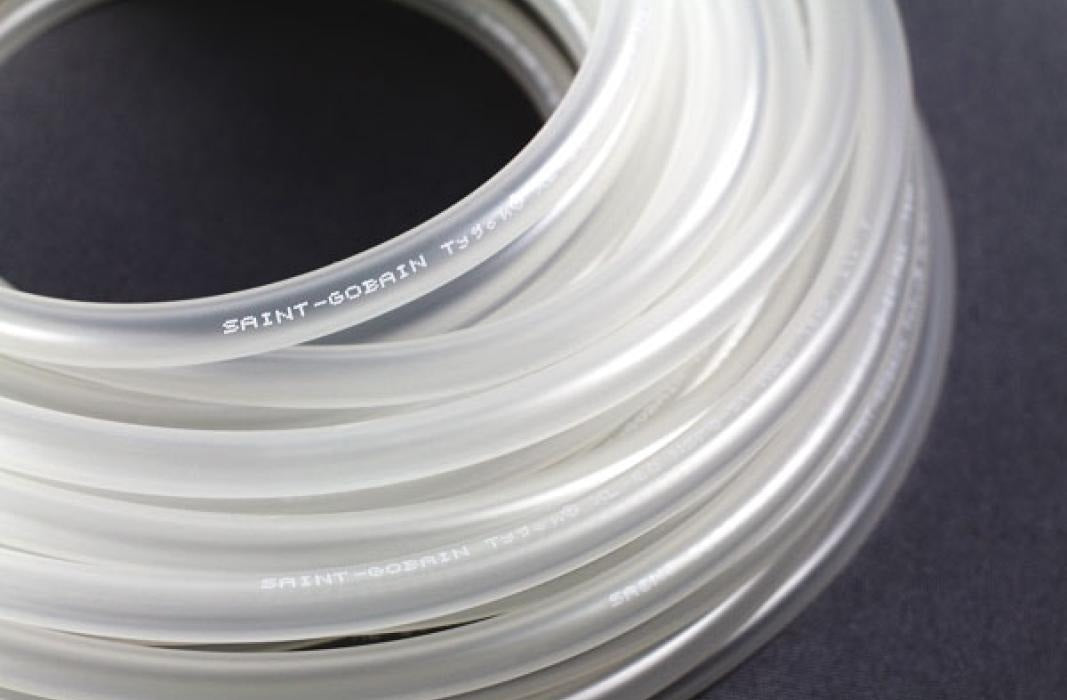

AN800003 Tygon® by Saint Gobain | XL-60 | Flexible Food & Beverage Dispensing Tubing | 1/16" ID x 3/16" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® XL-60 | Flexible Food & Beverage Dispensing Tubing
Tygon® XL-60 clear peristaltic pump tubing from Saint-Gobain is ideal for food and beverage dispensing.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $63.55 |
| 40–79 | $57.47 |
| 80+ | $54.09 |
Tygon® XL-60 | Reinforced Food & Beverage Process Tubing
Tygon® XL-60 clear peristaltic pump tubing from Saint-Gobain is ideal for food and beverage dispensing. It has the ability to maintain pump life for more than 500 hours and, with a durometer hardness of Shore A 60, it is extremely flexible and long lasting – reducing downtime due to pump tubing failure. This high-performance tubing is an excellent alternative to silicones and PVC when longer pump life is required.
1
What is this product used for?
- Peristaltic pumps
- Food and beverage transfer
- Cleaning chemicals
2
What are the key specifications?
Thermoplastic Elastomer
Thermoplastic Elastomer
None
Clear
250°F (121°C)
-87°F (-66°C)
FDA 21 CFR 177.2600
NSF®-51
EU 10/2011
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature resistant up to 250°F.
- Low extractables.
- Alternative to PVC.
- Clear and flexible.
- Resistant to ozone, oxygen, and sunlight aging, as well as chemicals and a wide range of fluids, including acids and bases.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AN800003 | 1/16" | 3/16" | 1/16" | 1/2" | 35 PSI | 29.9 in. Hg | 50ft |
| AN800007 | 1/8" | 1/4" | 1/16" | 1/2" | 20 PSI | 29.9 in. Hg | 50ft |
| AN800012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 29.9 in. Hg | 50ft |
| AN800017 | 1/4" | 3/8" | 1/16" | 1" | 15 PSI | 29.9 in. Hg | 50ft |
| AN800022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 11 PSI | 20.0 in. Hg | 50ft |
| AN800027 | 3/8" | 1/2" | 1/16" | 2" | 11 PSI | 15.0 in. Hg | 50ft |
| AN800038 | 1/2" | 3/4" | 1/8" | 2-1/2" | 15 PSI | 29.9 in. Hg | 50ft |
| AN800053 | 3/4" | 1" | 1/8" | 4" | 11 PSI | 20.0 in. Hg | 50ft |
| AN800046 | 5/8" | 7/8" | 1/8" | 3" | 11 PSI | 20.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® XL-60 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
35
