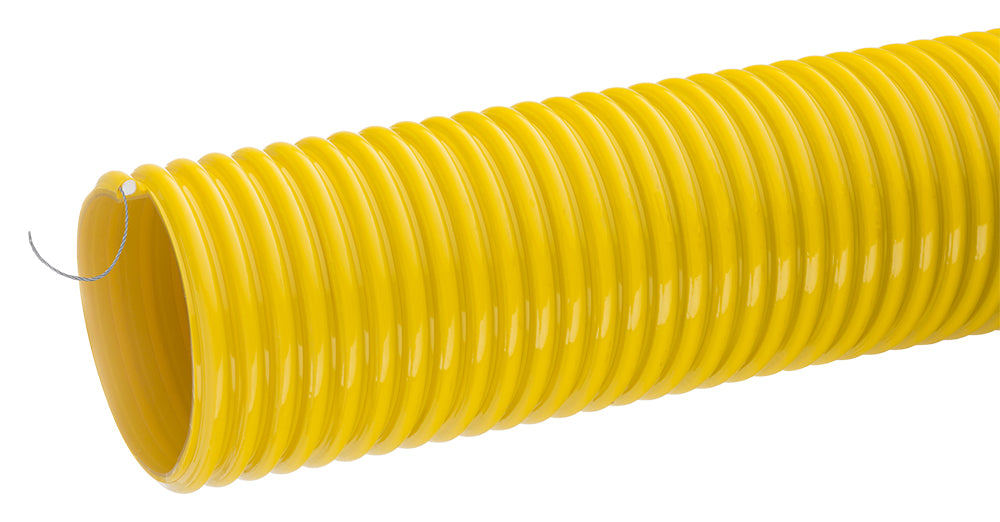

AMPH-SLR800X60 Tigerflex® Amphibian™ SOLARGUARD™ by Kuriyama | AMPH-SLR™ Series | Heavy Duty Wet or Dry Material Handling Hose with High UV Resistance | PVC & Polyurethane | 8" ID | 9.15" OD | 60ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
High-Visibility Abrasive Material Handling Hose
Kuriyama Tigerflex Amphibian™ AMPH-SLR Series
High-visibility polyurethane-lined hose designed for severe wet or dry abrasive material handling, hydroexcavation and industrial vacuum applications.
Abrasion Resistant
Thick polyurethane liner supports severe service
UV Protected
Solarguard material helps resist UV-related cracking
Grounding Wire
Included in 6-inch and 8-inch hose sizes
Safety Yellow
High visibility helps reduce jobsite hazards
1

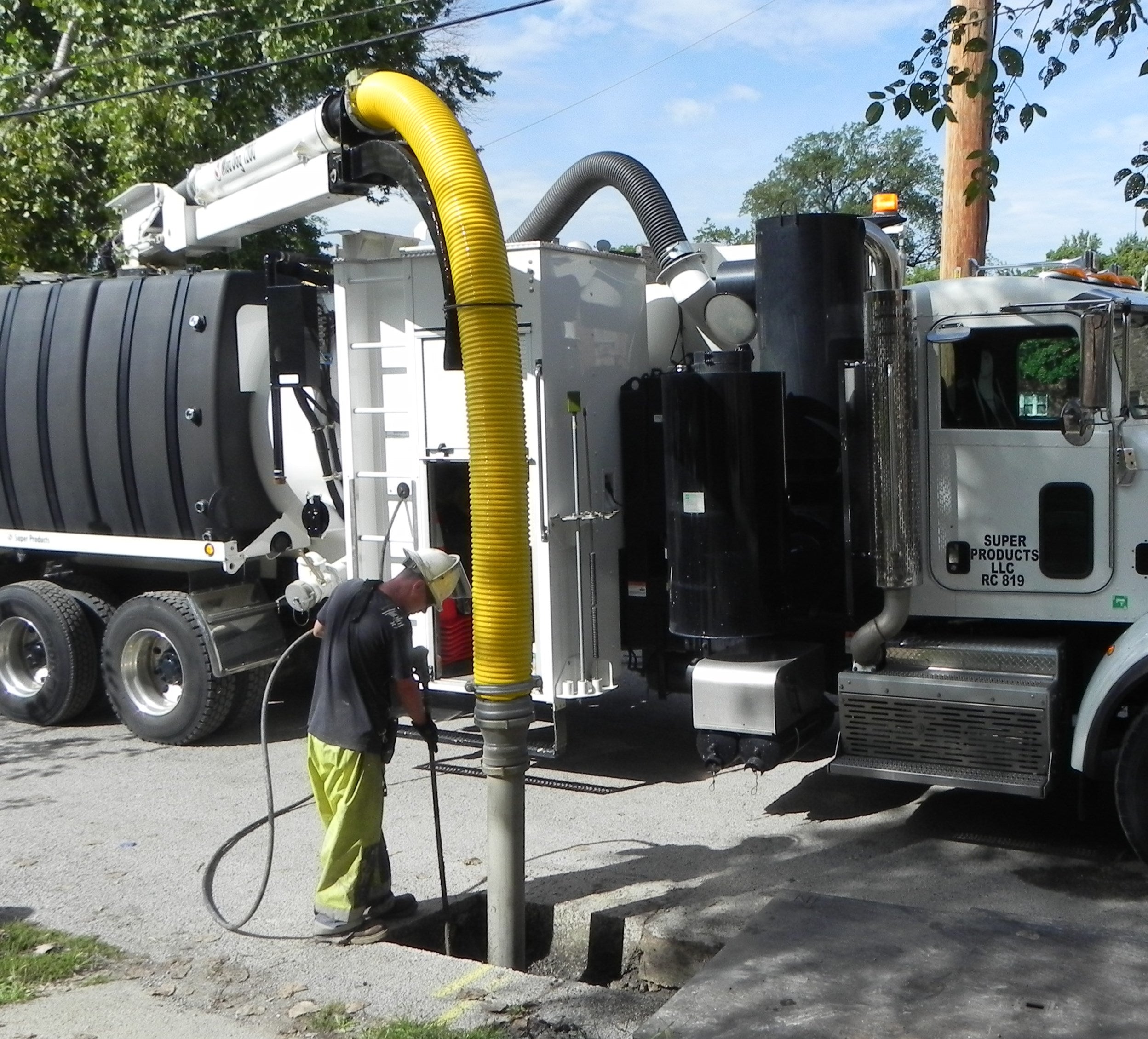

What is this product used for?
- Hydroexcavation
- Industrial vacuum equipment
- Heavy-duty abrasive material handling
- Sewer truck boom hose
- Slurry handling
2
What are the key specifications?
Tube
Ether polyurethane liner
Reinforcement
PVC helix
Cover
Yellow PVC
Temperature Range
-4°F (-20°C) to +150°F (+65°C)
Compliance
Phthalate free
Country of Origin
Made in the USA
3
What are the main product features?
- Thick Amphibian™ Abrasion-Resistant Polyurethane Liner — Designed for wet or dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
- Advanced UV Protection — Solarguard hose material is specially formulated to resist cracking caused by exposure to damaging ultraviolet light.
- Grounding Wire on 6-Inch and 8-Inch Sizes — Multi-strand wire helps reduce static electricity buildup and support smooth material flow.
- Safety Yellow Color — High-visibility construction helps reduce the risk of tripping over or driving across the hose.
- Convoluted Cover Design — Provides increased hose flexibility for demanding applications.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| AMPH-SLR300X100 | 3" | 76.2 | 3.65" | 92.6 | 40 PSI | 20 PSI | Full | 28 in Hg | 6" | 100 | 1.18 |
| AMPH-SLR600X100 | 6" | 153.4 | 7.00" | 177.8 | 30 PSI | 15 PSI | 28 in Hg | 25 in Hg | 18" | 100 | 4.14 |
| AMPH-SLR800X60 | 8" | 204.8 | 9.15" | 232.4 | 22 PSI | 15 PSI | 26 in Hg | 25 in Hg | 22" | 60 | 6.49 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional construction, application and product information.
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed. UV-performance information is based on third-party testing, but actual performance may vary with temperature, stress, strain and chemical exposure.
How is this product sold?
Available in 60- and 100-foot lengths, depending on hose size.
⚠ CAUTION: Certain sizes are designed to dissipate static electricity only when the embedded grounding wire is physically extracted and securely connected to ground through the fitting or by another suitable method. Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.
