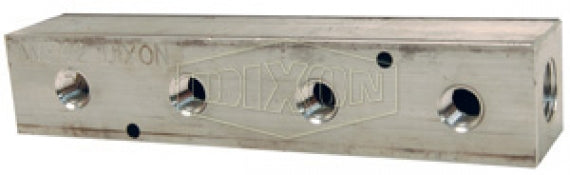

AMF32 by Dixon Valve | Pneumatic Bar Manifold | 3/8" Female NPT Inlet | 1/4" Female NPT Outlets (4) | Aluminum

AMF32 by Dixon Valve | Pneumatic Bar Manifold | 3/8" Female NPT Inlet | 1/4" Female NPT Outlets (4) | Aluminum

Sale price$66.55

Bar Manifolds The bar manifold can be mounted on a wall or work bench, safely distributing four hose lines to a work area.

Buy More, Save More!
Quantity Price Each
10–39 $62.56
40–79 $56.57
80+ $49.91
Discounts applied in cart/checkout.

Product Data:
Features:
  • Safely distributes four hose lines to a work area.
  • Maximum operating pressure: 300 PSI at ambient temperature 70 °F (21 °C).
Material:
  • Aluminum
Aluminum
Part Number		 A B C D E F G H J
AMF32 1/4" 7-5/8" 7/8" 1-1/4" 1-7/8" 3-3/4" 1" 3/8" .20"
AMF42 1/4" 7-5/8" 1-1/8" 1-1/2" 1-7/8" 3-3/4" 1" 1/2" .20"
AMF43 3/8" 8" 1-1/8" 1-1/2" 2" 4" 1" 1/2" .20"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
