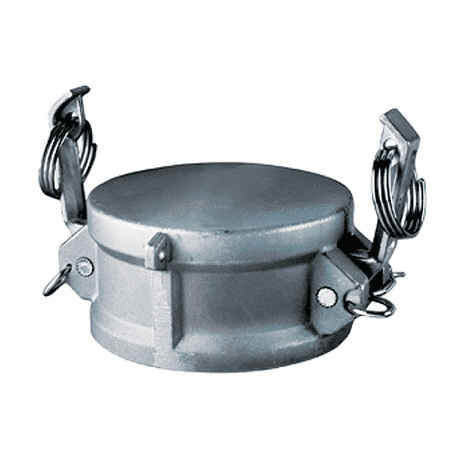

ALSH-DC200 by Kuriyama | Quick-Acting Coupling | Part DC | 2" Dust Cap | Aluminum

ALSH-DC200 by Kuriyama | Quick-Acting Coupling | Part DC | 2" Dust Cap | Aluminum

Sale price$26.63

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - Aluminum

Buy More, Save More!
Quantity Price Each
10–39 $25.03
40–79 $22.64
80+ $19.97
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 2in Female Cam & Groove
Material(s):
  • Aluminum
  • 304 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • Type 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
ALSH-DC100 1" 0.34 lbs
ALSH-DC125 1-1/4" 0.58 lbs
ALSH-DC150 1-1/2" 0.64 lbs
ALSH-DC200 2" 0.8 lbs
ALSH-DC250 2-1/2" 0.94 lbs
ALSH-DC300 3" 1.44 lbs
ALSH-DC400 4" 2.34 lbs
