ALSH-C250 by Kuriyama | ALSH-C Series | Part C | Cam & Groove Fitting | Tri-Couple | 2-1/2" Coupler x 2-1/2" Hose Barb | Aluminum / SS Handles
Buy more, save moreDiscounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.

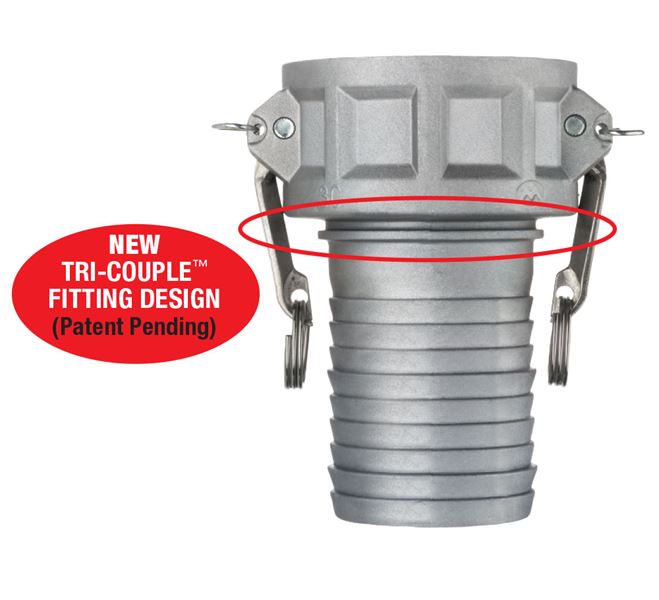

- Tri-Couple design available in 1-1/2", 2", 2-1/2", 3", 4" sizes.
- Hose shanks specially designed for easy assembly with Tigerflex™ hoses.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with stainless steel handles which are preferred in agriculture markets.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| ALSH-C100 | 1" | 250 PSI | B85 Grade 383 | 0.42 lbs |
| ALSH-C125 | 1-1/4" | 250 PSI | B108-92 356 | 0.68 lbs |
| ALSH-C150* | 1-1/2" | 250 PSI | B85 Grade 383 | 0.74 lbs |
| ALSH-C200* | 2" | 250 PSI | B85 Grade 383 | 0.98 lbs |
| ALSH-C250* | 2-1/2" | 150 PSI | B85 Grade 383 | 1.28 lbs |
| ALSH-C300* | 3" | 150 PSI | B85 Grade 383 | 2.20 lbs |
| ALSH-C400* | 4" | 150 PSI | B85 Grade 383 | 3.16 lbs |
* Designates Tri-Couple fitting.
Additional Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
