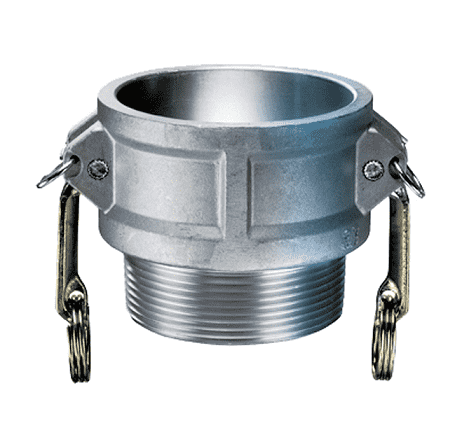

ALSH-B100 by Kuriyama | Quick-Acting Coupling | Part B | 1" Female Coupler x 1" Male NPT | Aluminum

ALSH-B100 by Kuriyama | Quick-Acting Coupling | Part B | 1" Female Coupler x 1" Male NPT | Aluminum

Sale price$20.75

Kuriyama Couplings™ - Quick-Acting Couplings - Part B - Female Coupler x Male NPT - Aluminum

Buy More, Save More!
Quantity Price Each
10–39 $19.51
40–79 $17.64
80+ $15.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 1in Female Cam & Groove
  • 1in Male NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2", 5" and 8" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • All 8" and 10" female couplers supplied with 4 locking handles, safety clips, pull rings and chains
  • Aluminum alloy is specially designed for high tensile strength, lightness and rigidity.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2"
  • Hose shanks specially designed for easy assembly with Tigerflex type hoses
  • Aluminum couplings supplied with brass handles which results in less wear on connecting parts
Materials:
  • ASTM B85 Grade 383 aluminum alloy.
  • Forged brass handles - aluminum items.
  • TType 304 stainless steel handles - ALSH items.
  • Zinc-plated carbon steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Zinc-plated carbon steel safety clips
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
ALSH-B100 1" x 1" 0.36 lbs
ALSH-B125 1-1/4" x 1-1/4" 0.62 lbs
ALSH-B150 1-1/2" x 1-1/2" 0.70 lbs
ALSH-B200 2" x 2" 0.86 lbs
ALSH-B250 2-1/2" x 2-1/2" 1.02 lbs
ALSH-B300 3" x 3" 1.56 lbs
ALSH-B400 4" x 4" 2.42 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
