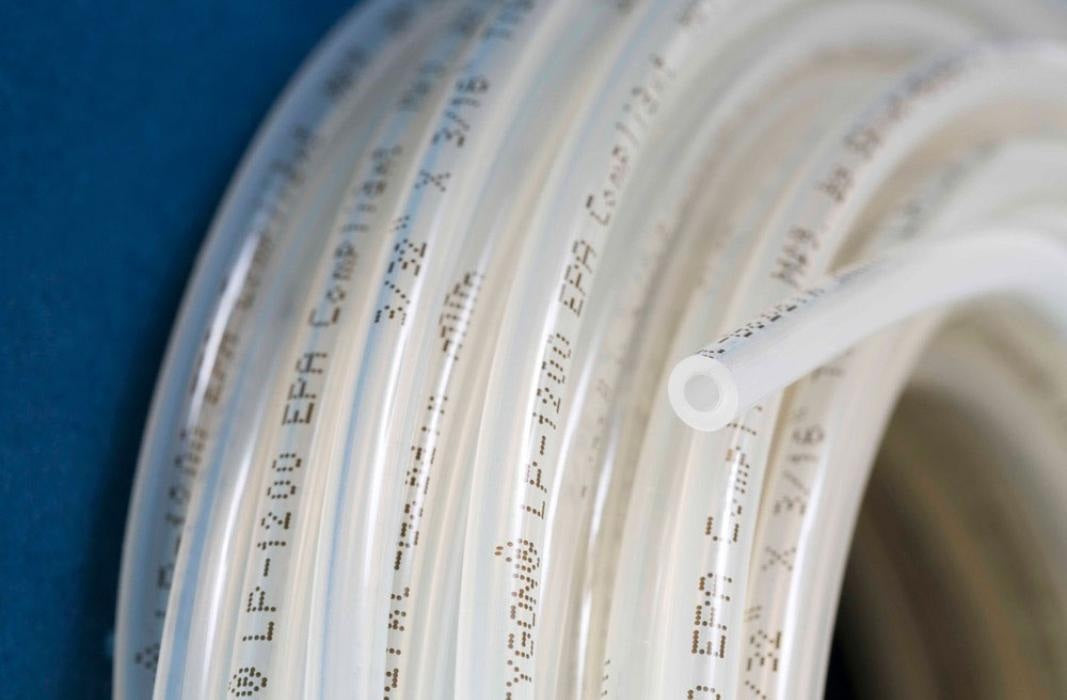

ALR00012 Tygon® by Saint Gobain | Power LP-1200 Series | EPA Compliant Fuel Tubing | 3/16" ID x 5/16" OD x 1/16" Wall | 50ft Length
Saint Gobain
Tygon® Power LP-1200 | EPA Compliant Fuel Tubing
Tygon® Power LP-1200 tubing is ideal for lawn and garden power equipment, lawn and lubricating oil, small engine fuel lines, and grease transfer lines
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $75.14 |
| 20–59 | $67.95 |
| 60+ | $63.95 |
Tygon® Power LP-1200 | EPA Compliant Fuel Tubing
Tygon® Power LP-1200 tubing from Saint-Gobain is ideal for lawn and garden power equipment, lawn and lubricating oil, small engine fuel lines, and grease transfer lines, and it is specially designed to meet evaporative emission standards of 15g/m²/day. This patented tubing’s robust, multi-layer construction is extremely tight fitting and resistant to swelling, hardening and cracking caused by hydrocarbon-based fluids.
1
What is this product used for?
- Brush cutters
- Chainsaws
- Cut-off machines
- Earth/ice augers
- Edgers
- Engine drills
- Hedge and weed trimmers
- Leaf blowers
- Pole pruners
- Split-boom products
- Tillers
- Not recommended for reuse in higher temperature applications
2
What are the key specifications?
High purity fluoropolymer inner liner
N/A
None
Translucent
180°F (82°C)
-20°F (-28°C)
Meets new EPA and CARB evaporative emission standards of 15g/m2/day
Not intended as an implant material!
3
What are the main product features?
- Transparent and easy to diagnose fuel flow or leak problems.
- Excellent fitting retention and 100% seal for optimum safety.
- Superior flexibility and easy assembly, routing and optimized fuel pick-up.
- Excellent elasticity and prevents “necking” from over-stretching during installation.
- Submersible and applicable with most fuel application.
- Superior fuel resistance and compatible with ethanol-enhanced fuels and worry-free operation.
- High purity fluoropolymer inner liner and reduces the risk of fuel system fouling from extractable solids found in typical rubber products.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Length | Min. Bend Radius |
Max. Working Pressure |
Vacuum Rating |
|---|---|---|---|---|---|---|---|
| ALR00700 | 2/25" | 7/50" | 3/100" | 50ft | 1/4" | 70 PSI | 29.9 inHG |
| ALR00165 | 3/32" | 3/16" | 3/64" | 50ft | 1/4" | 65 PSI | 29.9 inHG |
| ALR00007 | 1/8" | 1/4" | 1/16" | 50ft | 3/8" | 60 PSI | 29.9 inHG |
| ALR00012 | 3/16" | 5/16" | 1/16" | 50ft | 1/2" | 45 PSI | 29.9 inHG |
| ALR00017 | 1/4" | 3/8" | 1/16" | 50ft | 5/8" | 30 PSI | 29.9 inHG |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® Power LP-1200 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
