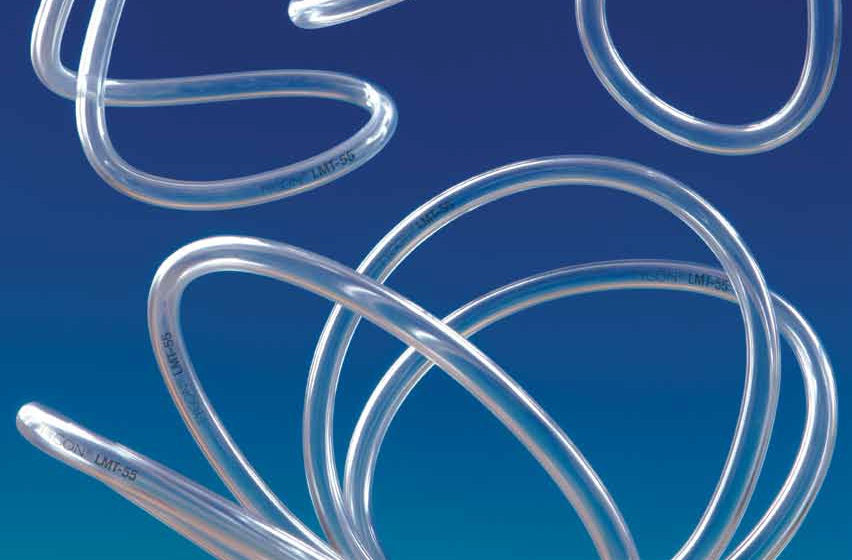

ALH00041 Tygon® by Saint Gobain | LMT-55 | Non-DEHP Laboratory & Vacuum Tubing | 9/16" ID x 3/4" OD x 3/32" Wall | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Laboratory Tubing
Tygon® LMT-55 | Non-DEHP Laboratory & Vacuum Tubing
TYGON® LMT-55 Laboratory Tubing handles most inorganic chemicals found in the laboratory. It is non-oxidizing and non-contaminating, and less permeable than rubber tubing. The glassy-smooth inner bore helps prevent buildup to facilitate cleaning, and coils are marked at 1-foot (30.4 cm) intervals for easy measuring. TYGON® LMT-55 Laboratory Tubing may be safely sterilized by autoclaving and, due to its excellent chemical resistance, may also be sterilized chemically or by gas (ethylene oxide).
1
What is this product used for?
- General laboratory
- Analytical instruments
- Peristaltic and vacuum pumps
- Ideal for condensers, incubators, desiccators, gas lines and drain lines
2
What are the key specifications?
Tube
Non-DEHP PVC
Cover
Non-DEHP PVC
Reinforcement
None
Colors
Clear
Maximum Recommended Operating Temp. °F (°C)
165°F (74°C)
Brittleness by Impact Temp. °F (°C)
-58°F (50°C)
Specifications
N/A
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Outstanding chemical resistance.
- Lot-to-lot consistency for reproducible results.
- Non-oxidizing and non-contaminating.
- Smooth, polished inner wall.
- Contains no BPA.
- Slips easily over fittings and grips securely for simple lab set-ups.
- Standard sizes available to hold full vacuum at room temperature.
- The new non-DEHP formulation delivers the same excellent performance.
- Increases productivity in peristaltic pumps – outlasts other clear tubing 2 to 1.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73°F (PSI) |
Vacuum Rating at 73°F (in. Hg) |
Length | Minimum Footage Required |
|---|---|---|---|---|---|---|---|---|
| LMT-55 Non-DEHP Laboratory Tubing | ||||||||
| ALH00001 | 1/32" | 3/32" | 1/32" | 1/8" | 80 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH00002 | 1/16" | 1/8" | 1/32" | 1/4" | 45 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH02002 | 1/16" | 1/8" | 1/32" | 1/8" | 45 PSI | 29.9 in. Hg | 100ft | 4,000ft (4 Week Lead Time) |
| ALH04002 | 1/16" | 1/8" | 1/32" | 1/8" | 45 PSI | 29.9 in. Hg | 500ft | 4,000ft (4 Week Lead Time) |
| ALH00003 | 1/16" | 3/16" | 1/16" | 1/8" | 75 PSI | 29.9 in. Hg | 50ft | 2,000ft (4 Week Lead Time) |
| ALH00004 | 3/32" | 5/32" | 1/32" | 3/8" | 30 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH02004 | 3/32" | 5/32" | 1/32" | 3/8" | 30 PSI | 29.9 in. Hg | 100ft | 4,000ft (4 Week Lead Time) |
| ALH00005 | 3/32" | 7/32" | 1/16" | 1/4" | 55 PSI | 29.9 in. Hg | 50ft | 2,000ft (4 Week Lead Time) |
| ALH00006 | 1/8" | 3/16" | 1/32" | 1/2" | 25 PSI | 20 in. Hg | 50ft | 3,500ft (4 Week Lead Time) |
| ALH04006 | 1/8" | 3/16" | 1/32" | 1/2" | 25 PSI | 20 in. Hg | 500ft | 3,500ft (4 Week Lead Time) |
| ALH00007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH02007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 100 ft | 2,500ft (4 Week Lead Time) |
| ALH04007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 500ft | 2,500ft (4 Week Lead Time) |
| ALH00009 | 5/32" | 7/32" | 1/32" | 3/8" | 20 PSI | 12 in. Hg | 50ft | 3,500ft (4 Week Lead Time) |
| ALH00010 | 5/32" | 9./32" | 1/16" | 1/2" | 35 PSI | 29.9 in. Hg | 50ft | 2,500ft (4 Week Lead Time) |
| ALH02010 | 5/32" | 9/32" | 1/16" | 1/2" | 35 PSI | 29.9 in. Hg | 100ft | 2,500ft (4 Week Lead Time) |
| ALH00011 | 3/16" | 1/4" | 1/32" | 1" | 20 PSI | 9 in. Hg | 50ft | 3,000ft (4 Week Lead Time) |
| ALH00012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH02012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 100ft | 2,000ft (4 Week Lead Time) |
| ALH04012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 500ft | 2,000ft (4 Week Lead Time) |
| ALH00013 | 3/16" | 3/8" | 3/32" | 1/2" | 40 PSI | 29.9 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00014 | 3/16" | 7/16" | 1/8" | 3/8" | 55 PSI | 29.9 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00016 | 1/4" | 5/16" | 1/32" | 1-5/8" | 15 PSI | 5 in. Hg | 50ft | 3,000ft (4 Week Lead Time) |
| ALH00017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | 50ft | 50ft |
| ALH02017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 50 in. Hg | 100ft | 1,500ft (4 Week Lead Time) |
| ALH04017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | 500ft | 1,500ft (4 Week Lead Time) |
| ALH00018 | 1/4" | 7/16" | 3/32" | 3/4" | 35 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH00019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | 50ft | 1,300ft (4 Week Lead Time) |
| ALH02019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | 100ft | 1,300ft (4 Week Lead Time) |
| ALH00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 20 PSI | 13 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00023 | 5/16" | 1/2" | 3/32" | 1" | 30 PSI | 29.9 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH00024 | 5/16" | 9/16" | 1/8" | 7/8" | 35 PSI | 29.9 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00025 | 5/16" | 5/8" | 5/32" | 3/4" | 45 PSI | 29.9 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 20 PSI | 9 in. Hg | 50ft | 50ft |
| ALH00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 25 PSI | 21 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 30 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH00032 | 7/16" | 9/16" | 1/16" | 2-1/4" | 15 PSI | 7 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00033 | 7/16" | 5/8" | 3/32" | 1-3/4" | 20 PSI | 15 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 25 PSI | 28 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 10 PSI | 5 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 20 PSI | 12 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH02037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 20 PSI | 12 in. Hg | 100ft | 1200ft (4 Week Lead Time) |
| ALH00038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 25 PSI | 21 in. Hg | 50ft | 50ft |
| ALH00039 | 1/2" | 13/16" | 5/32" | 1-1/2" | 30 PSI | 29.9 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00041 | 9/16" | 3/4" | 3/32" | 2-1/2" | 15 PSI | 9 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00042 | 9/16" | 13/16" | 1/8" | 2" | 20 PSI | 17 in. Hg | 50ft | 900ft (4 Week Lead Time) |
| ALH00045 | 5/8" | 13/16" | 3/32" | 3" | 15 PSI | 7 in. Hg | 50ft | 900ft (4 Week Lead Time) |
| ALH00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 20 PSI | 13 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00047 | 5/8" | 15/16" | 5/32" | 2" | 25 PSI | 21 in. Hg | 50ft | 700ft (4 Week Lead Time) |
| ALH00050 | 11/16" | 7/8" | 3/32" | 3-1/2" | 15 PSI | 6 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00053 | 3/4" | 1" | 1/8" | 3-1/4" | 18 PSI | 9 in. Hg | 50ft | 50ft |
| ALH00054 | 3/4" | 1/16" | 5/32" | 2-3/4" | 20 PSI | 15 in. Hg | 50ft | 600ft (4 Week Lead Time) |
| ALH00055 | 3/4" | 1-1/8" | 3/16" | 2-3/8" | 25 PSI | 21 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00057 | 3/4" | 1-1/4" | 1/4" | 2" | 30 PSI | 29.9 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 15 PSI | 7 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00060 | 7/8" | 1-3/16" | 5/32" | 3-1/2" | 20 PSI | 11 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00062 | 1" | 1-1/4" | 1/8" | 4-3/4" | 15 PSI | 5 in. Hg | 50ft | 50ft |
| ALH00064 | 1" | 1-3/8" | 3/16" | 4" | 20 PSI | 12 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00065 | 1" | 1-1/2" | 1/4" | 3" | 25 PSI | 21 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00068 | 1-1/8" | 1-1/2" | 3/16" | 4-1/2" | 18 PSI | 9 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00069 | 1-1/4" | 1-1/2" | 1/8" | 7-7/8" | 12 PSI | 3 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 15 PSI | 7 in. Hg | 50ft | 300ft (4 Week Lead Time) |
| ALH00071 | 1-1/4" | 1-3/4" | 1/4" | 4-3/8" | 20 PSI | 13 in. Hg | 50ft | - (4 Week Lead Time) |
| ALH00073 | 1-1/2" | 1-7/8" | 3/16" | 7-1/4" | 15 PSI | 5 in. Hg | 50ft | 250ft (4 Week Lead Time) |
| ALH00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 18 PSI | 9 in. Hg | 50ft | 200ft (4 Week Lead Time) |
| ALH00076 | 1-3/4" | 2-1/4" | 1/4" | 7-1/2" | 16 PSI | 7 in. Hg | 50ft | 150ft (4 Week Lead Time) |
| ALH00078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 15 PSI | 5 in. Hg | 50ft | 100ft (4 Week Lead Time) |
| ALH05078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 15 PSI | 5 in. Hg | 20ft | 100ft (4 Week Lead Time) |
| LMT-55 Non-DEHP Laboratory Tubing (Unipacs) (10/10' lengths per carton) | ||||||||
| ALHUN007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 20 PSI | 9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 10 PSI | 5 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN053 | 3/4" | 1" | 1/8" | 3-1/4" | 18 PSI | 9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN062 | 1" | 1-1/4" | 1/8" | 4-3/4" | 15 PSI | 5 in. Hg | Pack of 10 10ft Lengths | - |
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® LMT-55 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
