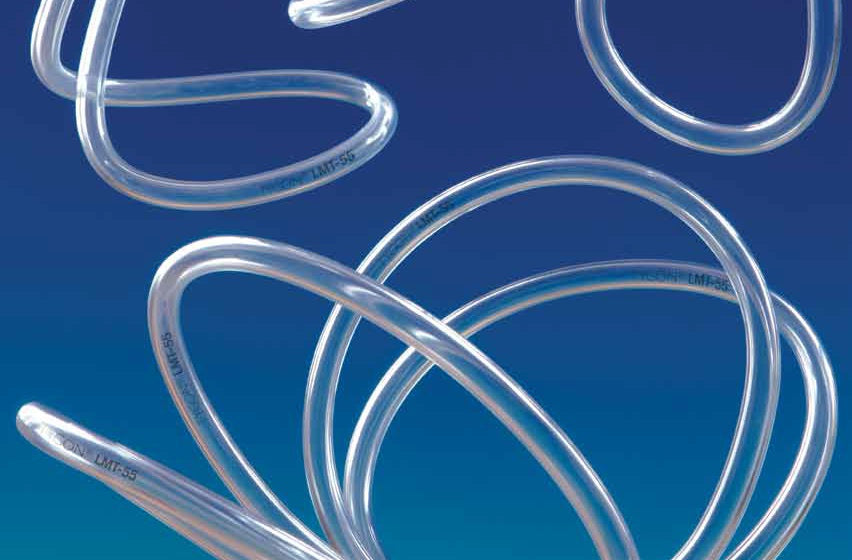

ALH00001 Tygon® by Saint Gobain | LMT-55 | Non-DEHP Laboratory & Vacuum Tubing | 1/32" ID x 3/32" OD x 1/32" Wall | 50' Package Length
Minimum Order Quantity: 80 Units
Saint Gobain
Tygon® LMT-55 | Non-DEHP Laboratory & Vacuum Tubing
Tygon® LMT-55 tubing is a flexible, crystal-clear laboratory tubing that offers excellent chemical resistance, low gas permeability, and a non-DEHP formulation for demanding analytical and research applications.
No by the foot sales. This is a Packaged Length product.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $14.95 |
| 40–79 | $13.52 |
| 80+ | $12.72 |
Discounts applied in cart/checkout.
Laboratory Tubing
Tygon® LMT-55 | Non-DEHP Laboratory & Vacuum Tubing
TYGON® LMT-55 Laboratory Tubing handles most inorganic chemicals found in the laboratory. It is non-oxidizing and non-contaminating, and less permeable than rubber tubing. The glassy-smooth inner bore helps prevent buildup to facilitate cleaning, and coils are marked at 1-foot (30.4 cm) intervals for easy measuring. TYGON® LMT-55 Laboratory Tubing may be safely sterilized by autoclaving and, due to its excellent chemical resistance, may also be sterilized chemically or by gas (ethylene oxide).
1
What is this product used for?
- General laboratory
- Analytical instruments
- Peristaltic and vacuum pumps
- Ideal for condensers, incubators, desiccators, gas lines and drain lines
2
What are the key specifications?
Tube
Non-DEHP PVC
Cover
Non-DEHP PVC
Reinforcement
None
Colors
Clear
Maximum Recommended Operating Temp. °F (°C)
165°F (74°C)
Brittleness by Impact Temp. °F (°C)
-58°F (50°C)
Specifications
N/A
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Outstanding chemical resistance.
- Lot-to-lot consistency for reproducible results.
- Non-oxidizing and non-contaminating.
- Smooth, polished inner wall.
- Contains no BPA.
- Slips easily over fittings and grips securely for simple lab set-ups.
- Standard sizes available to hold full vacuum at room temperature.
- The new non-DEHP formulation delivers the same excellent performance.
- Increases productivity in peristaltic pumps – outlasts other clear tubing 2 to 1.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73°F (PSI) |
Vacuum Rating at 73°F (in. Hg) |
Length | Minimum Footage Required |
|---|---|---|---|---|---|---|---|---|
| LMT-55 Non-DEHP Laboratory Tubing | ||||||||
| ALH00001 | 1/32" | 3/32" | 1/32" | 1/8" | 80 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH00002 | 1/16" | 1/8" | 1/32" | 1/4" | 45 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH02002 | 1/16" | 1/8" | 1/32" | 1/8" | 45 PSI | 29.9 in. Hg | 100ft | 4,000ft (4 Week Lead Time) |
| ALH04002 | 1/16" | 1/8" | 1/32" | 1/8" | 45 PSI | 29.9 in. Hg | 500ft | 4,000ft (4 Week Lead Time) |
| ALH00003 | 1/16" | 3/16" | 1/16" | 1/8" | 75 PSI | 29.9 in. Hg | 50ft | 2,000ft (4 Week Lead Time) |
| ALH00004 | 3/32" | 5/32" | 1/32" | 3/8" | 30 PSI | 29.9 in. Hg | 50ft | 4,000ft (4 Week Lead Time) |
| ALH02004 | 3/32" | 5/32" | 1/32" | 3/8" | 30 PSI | 29.9 in. Hg | 100ft | 4,000ft (4 Week Lead Time) |
| ALH00005 | 3/32" | 7/32" | 1/16" | 1/4" | 55 PSI | 29.9 in. Hg | 50ft | 2,000ft (4 Week Lead Time) |
| ALH00006 | 1/8" | 3/16" | 1/32" | 1/2" | 25 PSI | 20 in. Hg | 50ft | 3,500ft (4 Week Lead Time) |
| ALH04006 | 1/8" | 3/16" | 1/32" | 1/2" | 25 PSI | 20 in. Hg | 500ft | 3,500ft (4 Week Lead Time) |
| ALH00007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH02007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 100 ft | 2,500ft (4 Week Lead Time) |
| ALH04007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 500ft | 2,500ft (4 Week Lead Time) |
| ALH00009 | 5/32" | 7/32" | 1/32" | 3/8" | 20 PSI | 12 in. Hg | 50ft | 3,500ft (4 Week Lead Time) |
| ALH00010 | 5/32" | 9./32" | 1/16" | 1/2" | 35 PSI | 29.9 in. Hg | 50ft | 2,500ft (4 Week Lead Time) |
| ALH02010 | 5/32" | 9/32" | 1/16" | 1/2" | 35 PSI | 29.9 in. Hg | 100ft | 2,500ft (4 Week Lead Time) |
| ALH00011 | 3/16" | 1/4" | 1/32" | 1" | 20 PSI | 9 in. Hg | 50ft | 3,000ft (4 Week Lead Time) |
| ALH00012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH02012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 100ft | 2,000ft (4 Week Lead Time) |
| ALH04012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | 500ft | 2,000ft (4 Week Lead Time) |
| ALH00013 | 3/16" | 3/8" | 3/32" | 1/2" | 40 PSI | 29.9 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00014 | 3/16" | 7/16" | 1/8" | 3/8" | 55 PSI | 29.9 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00016 | 1/4" | 5/16" | 1/32" | 1-5/8" | 15 PSI | 5 in. Hg | 50ft | 3,000ft (4 Week Lead Time) |
| ALH00017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | 50ft | 50ft |
| ALH02017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 50 in. Hg | 100ft | 1,500ft (4 Week Lead Time) |
| ALH04017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | 500ft | 1,500ft (4 Week Lead Time) |
| ALH00018 | 1/4" | 7/16" | 3/32" | 3/4" | 35 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH00019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | 50ft | 1,300ft (4 Week Lead Time) |
| ALH02019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | 100ft | 1,300ft (4 Week Lead Time) |
| ALH00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 20 PSI | 13 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00023 | 5/16" | 1/2" | 3/32" | 1" | 30 PSI | 29.9 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH00024 | 5/16" | 9/16" | 1/8" | 7/8" | 35 PSI | 29.9 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00025 | 5/16" | 5/8" | 5/32" | 3/4" | 45 PSI | 29.9 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 20 PSI | 9 in. Hg | 50ft | 50ft |
| ALH00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 25 PSI | 21 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 30 PSI | 29.9 in. Hg | 50ft | 50ft |
| ALH00032 | 7/16" | 9/16" | 1/16" | 2-1/4" | 15 PSI | 7 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00033 | 7/16" | 5/8" | 3/32" | 1-3/4" | 20 PSI | 15 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 25 PSI | 28 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 10 PSI | 5 in. Hg | 50ft | 1,500ft (4 Week Lead Time) |
| ALH00037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 20 PSI | 12 in. Hg | 50ft | 1,200ft (4 Week Lead Time) |
| ALH02037 | 1/2" | 11/16" | 3/32" | 2-1/4" | 20 PSI | 12 in. Hg | 100ft | 1200ft (4 Week Lead Time) |
| ALH00038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 25 PSI | 21 in. Hg | 50ft | 50ft |
| ALH00039 | 1/2" | 13/16" | 5/32" | 1-1/2" | 30 PSI | 29.9 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00041 | 9/16" | 3/4" | 3/32" | 2-1/2" | 15 PSI | 9 in. Hg | 50ft | 1,000ft (4 Week Lead Time) |
| ALH00042 | 9/16" | 13/16" | 1/8" | 2" | 20 PSI | 17 in. Hg | 50ft | 900ft (4 Week Lead Time) |
| ALH00045 | 5/8" | 13/16" | 3/32" | 3" | 15 PSI | 7 in. Hg | 50ft | 900ft (4 Week Lead Time) |
| ALH00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 20 PSI | 13 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00047 | 5/8" | 15/16" | 5/32" | 2" | 25 PSI | 21 in. Hg | 50ft | 700ft (4 Week Lead Time) |
| ALH00050 | 11/16" | 7/8" | 3/32" | 3-1/2" | 15 PSI | 6 in. Hg | 50ft | 800ft (4 Week Lead Time) |
| ALH00053 | 3/4" | 1" | 1/8" | 3-1/4" | 18 PSI | 9 in. Hg | 50ft | 50ft |
| ALH00054 | 3/4" | 1/16" | 5/32" | 2-3/4" | 20 PSI | 15 in. Hg | 50ft | 600ft (4 Week Lead Time) |
| ALH00055 | 3/4" | 1-1/8" | 3/16" | 2-3/8" | 25 PSI | 21 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00057 | 3/4" | 1-1/4" | 1/4" | 2" | 30 PSI | 29.9 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 15 PSI | 7 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00060 | 7/8" | 1-3/16" | 5/32" | 3-1/2" | 20 PSI | 11 in. Hg | 50ft | 500ft (4 Week Lead Time) |
| ALH00062 | 1" | 1-1/4" | 1/8" | 4-3/4" | 15 PSI | 5 in. Hg | 50ft | 50ft |
| ALH00064 | 1" | 1-3/8" | 3/16" | 4" | 20 PSI | 12 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00065 | 1" | 1-1/2" | 1/4" | 3" | 25 PSI | 21 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00068 | 1-1/8" | 1-1/2" | 3/16" | 4-1/2" | 18 PSI | 9 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00069 | 1-1/4" | 1-1/2" | 1/8" | 7-7/8" | 12 PSI | 3 in. Hg | 50ft | 400ft (4 Week Lead Time) |
| ALH00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 15 PSI | 7 in. Hg | 50ft | 300ft (4 Week Lead Time) |
| ALH00071 | 1-1/4" | 1-3/4" | 1/4" | 4-3/8" | 20 PSI | 13 in. Hg | 50ft | - (4 Week Lead Time) |
| ALH00073 | 1-1/2" | 1-7/8" | 3/16" | 7-1/4" | 15 PSI | 5 in. Hg | 50ft | 250ft (4 Week Lead Time) |
| ALH00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 18 PSI | 9 in. Hg | 50ft | 200ft (4 Week Lead Time) |
| ALH00076 | 1-3/4" | 2-1/4" | 1/4" | 7-1/2" | 16 PSI | 7 in. Hg | 50ft | 150ft (4 Week Lead Time) |
| ALH00078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 15 PSI | 5 in. Hg | 50ft | 100ft (4 Week Lead Time) |
| ALH05078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 15 PSI | 5 in. Hg | 20ft | 100ft (4 Week Lead Time) |
| LMT-55 Non-DEHP Laboratory Tubing (Unipacs) (10/10' lengths per carton) | ||||||||
| ALHUN007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN012 | 3/16" | 5/16" | 1/16" | 5/8" | 30 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 20 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN019 | 1/4" | 1/2" | 1/8" | 1/2" | 40 PSI | 29.9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN027 | 3/8" | 1/2" | 1/16" | 1-1/2" | 20 PSI | 9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 10 PSI | 5 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN053 | 3/4" | 1" | 1/8" | 3-1/4" | 18 PSI | 9 in. Hg | Pack of 10 10ft Lengths | - |
| ALHUN062 | 1" | 1-1/4" | 1/8" | 4-3/4" | 15 PSI | 5 in. Hg | Pack of 10 10ft Lengths | - |
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® LMT-55 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
80
