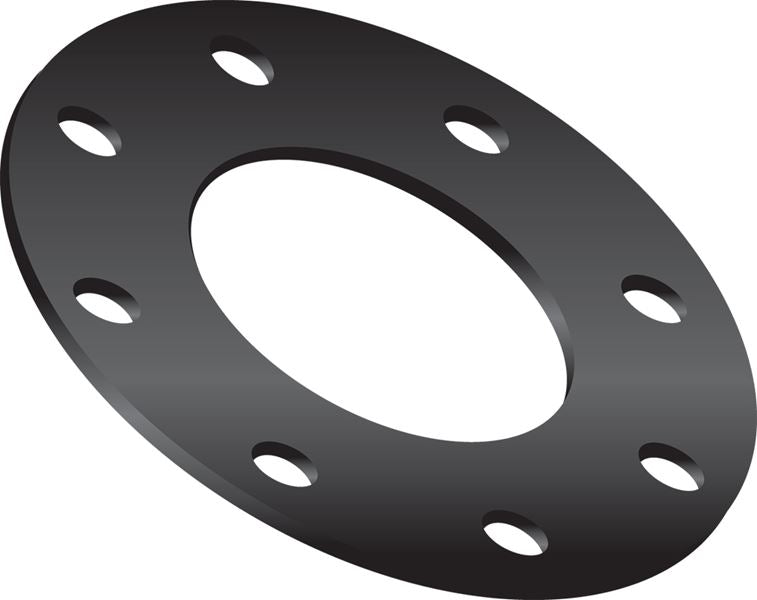

ALFASEAL300 Alfagomma by Kuriyama | ALFASEAL Series | Flange Seal for 3" ID ALFAMUFF Coupling | SBR
Kuriyama of America Inc.
Alfagomma | ALFASEAL Series | Field Replaceable Fixed Flange-Muff Coupling
Black SBR flange seal with elliptical drilling patterns compatible with the ALFAMUFF Series couplings.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.65 |
| 40–79 | $15.05 |
| 80+ | $13.28 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Material(s):
Compatible Series:
| Properties: | |||
|---|---|---|---|
|
| SBR Part Number |
Hose ID | Thickness | Use with ALFAMUFF Coupling | |
|---|---|---|---|---|
| (in.) | (mm) | (mm) | ||
| ALFASEAL200 | 2" | 51mm | 8mm | ALFAMUFF200 |
| ALFASEAL300 | 3" | 76mm | 8mm | ALFAMUFF300 |
| ALFASEAL400 | 4" | 102mm | 8mm | ALFAMUFF400 |
| ALFASEAL600 | 6" | 152mm | 8mm | ALFAMUFF600 |
| ALFASEAL800 | 8" | 203mm | 8mm | ALFAMUFF800 |
| ALFASEAL1000 | 10" | 254mm | 8mm | ALFAMUFF1000 |
| ALFASEAL1200 | 12" | 305mm | 8mm | ALFAMUFF1200 |
