Sale price$345.90

Kuriyama of America Inc.

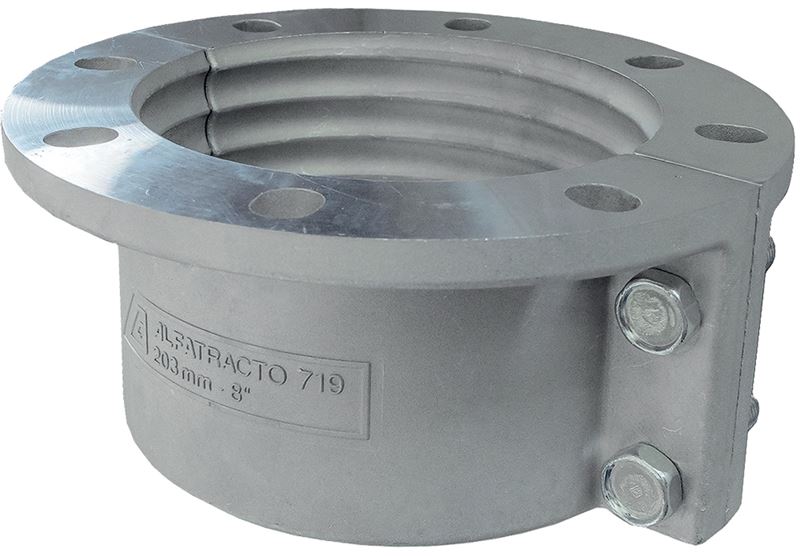

Alfagomma | ALFAMUFF Series | Field Replaceable Fixed Flange-Muff Coupling

150# Flange End specially designed for use with the T719AA abrasive slurry hose.

Coupling comes complete with bolts, nuts and washers.
Buy More, Save More!
Quantity Price Each
5–14 $325.15
15–29 $294.02
30+ $259.43
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • ALFAMUFF Series
Shape:

Straight
Features:

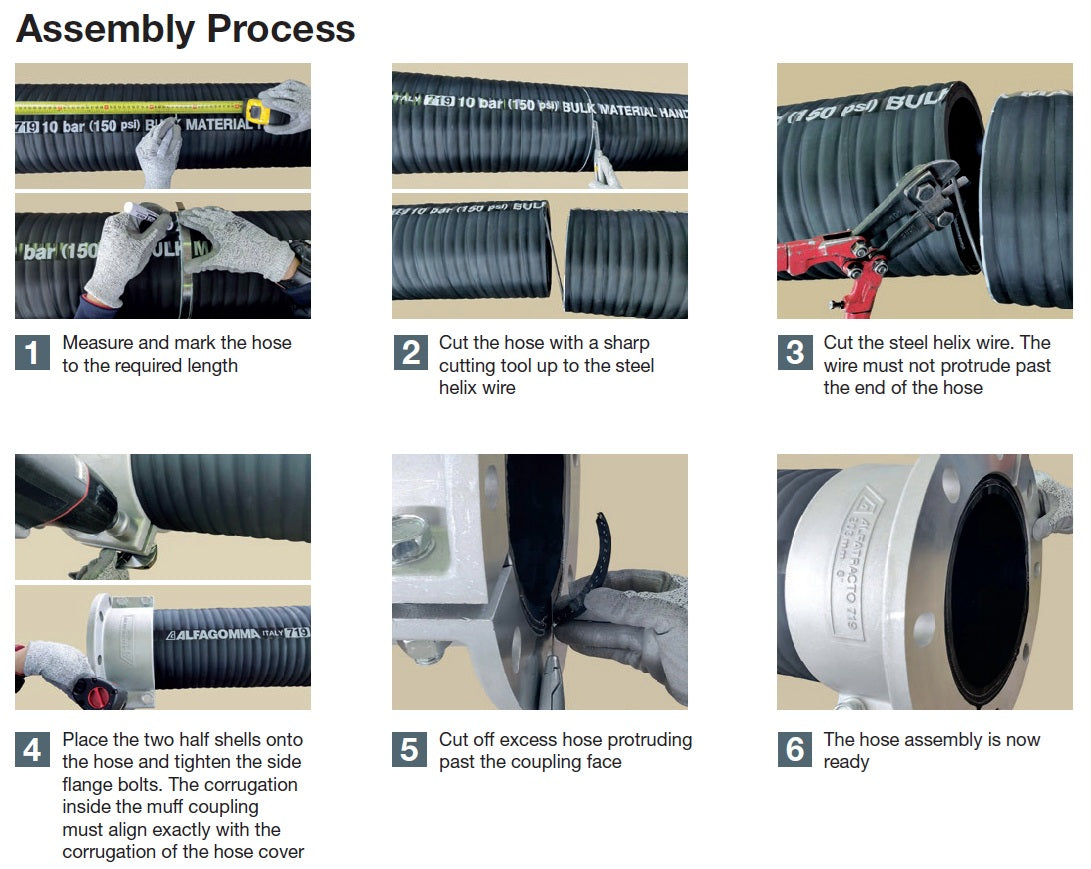

  • Easy Assembly - Two identical half shells connected with bolts (included) can be assembled in the field. (Coupling complete with bolts, nuts and washers.)
  • Reduces Replacement Costs - Re-usable and durable couplings since not in contact with transported abrasive materials.
  • Lightweight and Durable - Aluminum lightweight-flanged connection system.
  • Compatibility - Universal flanges with elliptical drilling patterns.
Specifications:
  • Max. Rec. Working Pressure: 150 PSI
  • Thread Type: Universal
Aluminum
Part Number		 Hose ID Length Flange
Compatibility		 Flange
Dimensions		 Use with
Hose		 Compatible
Flange Seal
(in.) (mm) (in.) (mm) A B
(in.) (mm) (in.) (mm)
ALFAMUFF200 2" 51mm 3.35" 85mm PN10/ASA150/TAB.D-E 6.50" 165mm 4.72" 120mm T719AA200X100 ALFASEAL200
ALFAMUFF300 3" 76mm 3.35" 85mm PN10/ASA150/TAB.D-E 7.87" 200mm 6.06" 154mm T719AA300X100 ALFASEAL300
ALFAMUFF400 4" 102mm 3.35" 85mm PN10/ASA150/TAB.D-E 9.05" 230mm 7.16" 182mm T719AA400X100 ALFASEAL400
ALFAMUFF600 6" 152mm 4.53" 115mm PN10/ASA150/TAB.D-E 11.22" 285mm 9.29" 236mm T719AA600X100 ALFASEAL600
ALFAMUFF800 8" 2036mm 5.90" 150mm PN10/ASA150/TAB.D-E 13.58" 345mm 11.50" 292mm T719AA800X100 ALFASEAL800
ALFAMUFF1000 10" 254mm 6.89" 175mm PN10/ASA150/TAB.E 15.94" 405mm 13.90" 353mm T719AA1000X40 ALFASEAL1000
ALFAMUFF1200 12" 305mm 7.68" 195mm PN10/ASA150/TAB.D-E 19.49" 495mm 16.46" 418mm T719AA1200X40 ALFASEAL1200
