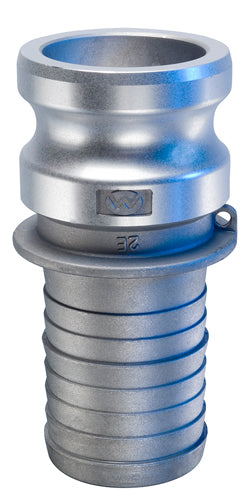

AL-E125 by Kuriyama | AL-E Series | Part E | Cam & Groove Fitting | 1-1/4" Adapter x 1-1/4" Hose Barb | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | AL-E Series | Part E | Adapter x Hose Barb | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.52 |
| 40–79 | $12.22 |
| 80+ | $10.79 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Tri-Couple™ design available in 1-1/2", 2", 2-1/2", 3", 4", 6" sizes.
- Hose Barbs especially designed for easy assembly with Tigerflex™ type hoses.
- Kuriyama offers two 8" coupling styles in aluminum.*
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
| Part Number | Adapter Size (in) |
Hose Barb Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-E050 | 1/2" | 1/2" | 250 PSI | B211 Grade 6063 | 0.08 lbs |
| AL-E075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.11 lbs |
| AL-E100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.20 lbs |
| AL-E125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.26 lbs |
| AL-E150** | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.38 lbs |
| AL-E200** | 2" | 2" | 250 PSI | B85 Grade 383 | 0.60 lbs |
| AL-E2015 | 2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.64 lbs |
| AL-E250** | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 0.86 lbs |
| AL-E300** | 3" | 3" | 150 PSI | B85 Grade 383 | 1.32 lbs |
| AL-E3020 | 3" | 2" | 150 PSI | B85 Grade 383 | 1.12 lbs |
| AL-E3040 | 3" | 4" | 150 PSI | B85 Grade 383 | 1.90 lbs |
| AL-E400** | 4" | 4" | 150 PSI | B85 Grade 383 | 2.10 lbs |
| AL-E4030 | 4" | 3" | 150 PSI | B85 Grade 383 | 2.03 lbs |
| AL-E500 | 5" | 5" | 75 PSI | B108-92 356 | 3.56 lbs |
| AL-E600** | 6" | 6" | 75 PSI | B85 Grade 383 | 6.16 lbs |
| AL-E800* | 8" | 8" | 50 PSI | B108-92 356 | 7.73 lbs |
| AL-E1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 12.90 lbs |
| HDAL-E801* | 8" | 8" | 50 PSI | B26, Grade 713 | 9.75 lbs |
** Tri-Couple Style
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-E800. If the measurement is more than 9" it is HDAL-E801.
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type E
Ends Configuration:
Material(s):
