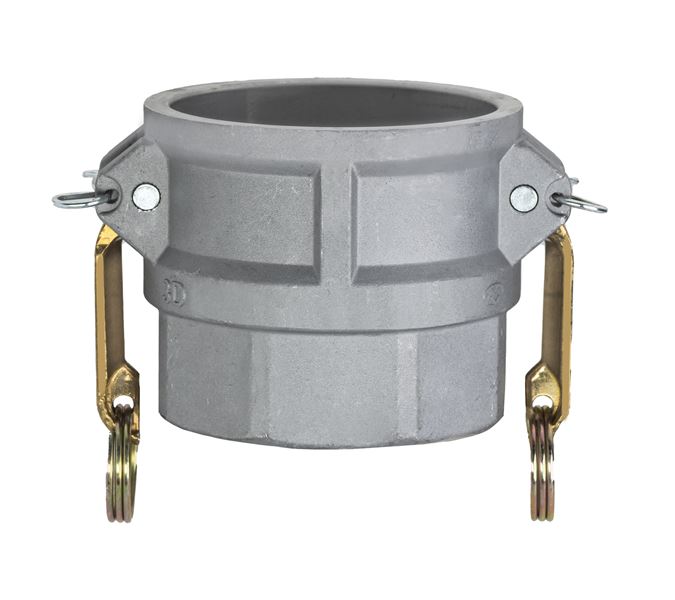

AL-D3020 by Kuriyama | AL-D Series | Part D | Cam & Groove Adapter | 3" Coupler x 2" Female NPT | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-D Series | Part D | Coupler x Female NPT | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $52.31 |
| 40–79 | $47.30 |
| 80+ | $41.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
150
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design to withstand rigorous applications found in industrial markets.
- Kuriyama offers two 8" coupling styles in aluminum.*
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
- 8" & 10" sizes supplied with four brass handles.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- Forged brass handles.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Coupler Size (in) |
Thread Size Female NPT (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-D050 | 1/2" | 1/2" | 250 PSI | B108-92 356 | 0.18 lbs |
| AL-D075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.22 lbs |
| AL-D100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.42 lbs |
| AL-D125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.68 lbs |
| AL-D150 | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.80 lbs |
| AL-D200 | 2" | 2" | 250 PSI | B85 Grade 383 | 0.92 lbs |
| AL-D2015 | 2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.88 lbs |
| AL-D250 | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 1.18 lbs |
| AL-D300 | 3" | 3" | 150 PSI | B85 Grade 383 | 1.80 lbs |
| AL-D3020 | 3" | 2" | 150 PSI | B85 Grade 383 | 1.65 lbs |
| AL-D400 | 4" | 4" | 150 PSI | B85 Grade 383 | 2.16 lbs |
| AL-D4030 | 4" | 3" | 150 PSI | B85 Grade 383 | 2.49 lbs |
| AL-D500 | 5" | 5" | 75 PSI | B108-92 356 | 3.42 lbs |
| AL-D600 | 6" | 6" | 75 PSI | B85 Grade 383 | 4.24 lbs |
| AL-D800 | 8" | 8" | 50 PSI | B108-92 356 | 9.50 lbs |
| AL-D1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 12.52lbs |
| HDAL-D801 | 8" | 8" | 50 PSI | B26, Grade 713 | 11.77 lbs |
* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-D800. If the measurement is more than 9" it is HDAL-D801.
