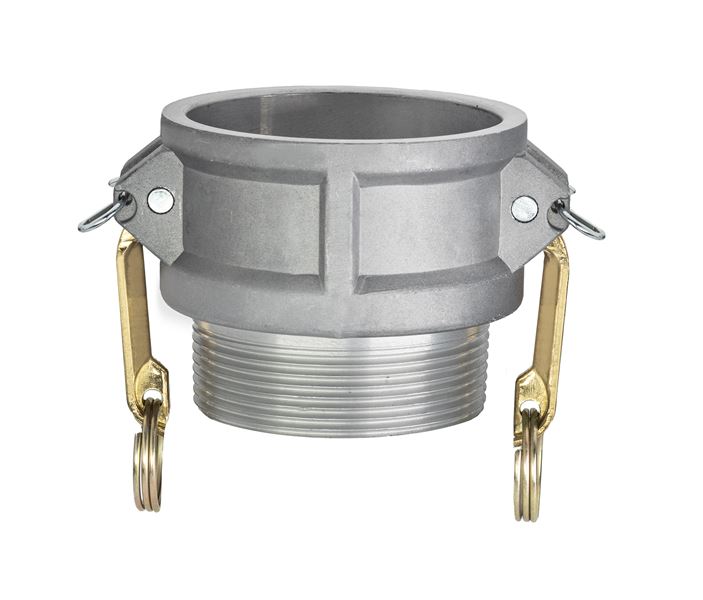

AL-B2015 by Kuriyama | AL-B Series | Part B | Cam & Groove Adapter | 2" Coupler x 1-1/2" Male NPT | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-B Series | Part B | Coupler x Male NPT | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.97 |
| 40–79 | $29.81 |
| 80+ | $26.30 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- Easy to install and disassemble.
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- Supplied with forged brass handles which results in less wear on connecting parts.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Coupler Size (in) |
Thread Size Female NPT (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|---|
| AL-B050 | 1/2" | 1/2" | 250 PSI | B108-92 356 | 0.18 lbs |
| AL-B075 | 3/4" | 3/4" | 250 PSI | B85 Grade 383 | 0.24 lbs |
| AL-B100 | 1" | 1" | 250 PSI | B85 Grade 383 | 0.36 lbs |
| AL-B125 | 1-1/4" | 1-1/4" | 250 PSI | B108-92 356 | 0.62 lbs |
| AL-B150 | 1-1/2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.70 lbs |
| AL-B200 | 2" | 2" | 250 PSI | B85 Grade 383 | 0.86 lbs |
| AL-B2015 | 2" | 1-1/2" | 250 PSI | B85 Grade 383 | 0.84 lbs |
| AL-B2030 | 2" | 3" | 250 PSI | B85 Grade 383 | 1.43 lbs |
| AL-B250 | 2-1/2" | 2-1/2" | 150 PSI | B85 Grade 383 | 1.02 lbs |
| AL-B300 | 3" | 3" | 150 PSI | B85 Grade 383 | 1.56 lbs |
| AL-B3020 | 3" | 2" | 150 PSI | B85 Grade 383 | 1.57 lbs |
| AL-B3040 | 3" | 4" | 150 PSI | B85 Grade 383 | 2.45 lbs |
| AL-B400 | 4" | 4" | 150 PSI | B85 Grade 383 | 2.42 lbs |
| AL-B4030 | 4" | 3" | 150 PSI | B85 Grade 383 | 2.31 lbs |
| AL-B500 | 5" | 5" | 75 PSI | B108-92 356 | 3.34 lbs |
| AL-B600 | 6" | 6" | 75 PSI | B85 Grade 383 | 4.984 lbs |
| AL-B800* | 8" | 8" | 50 PSI | B108-92 356 | 8.03 lbs |
| AL-B1000 | 10" | 10" | 50 PSI | B26, Grade 713 | 12.13 lbs |
| HDAL-B801* | 8" | 8" | 50 PSI | B26, Grade 713 | 10.54 lbs |
* To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-B800. If the measurement is more than 9" it is our HDAL-B801.
