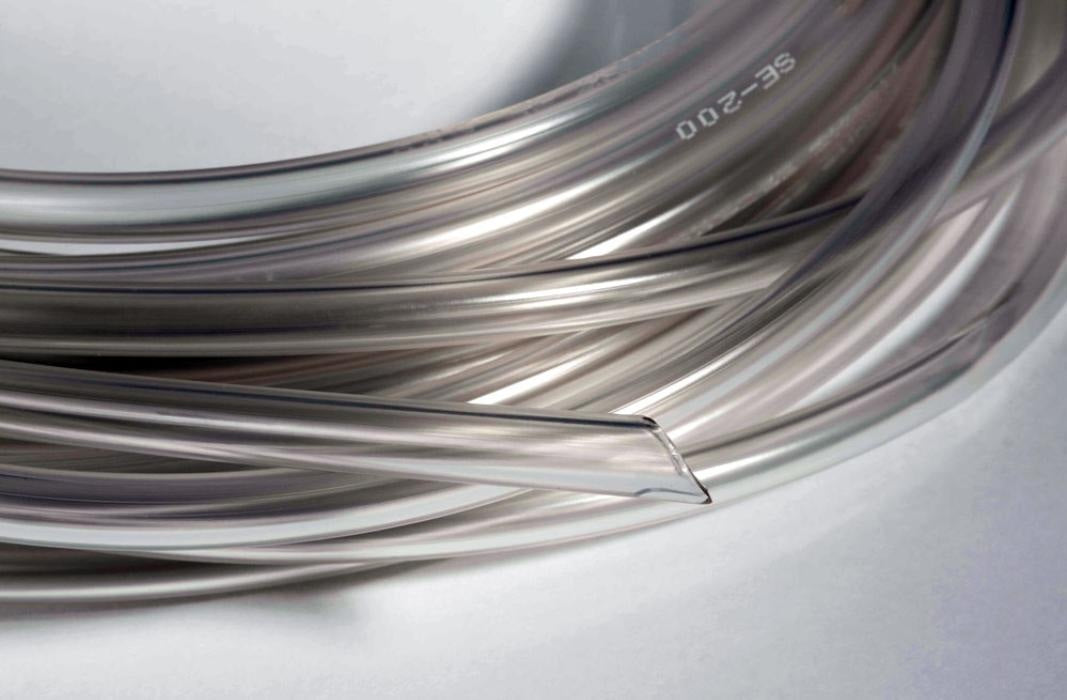

AJD00053 Versilon™ by Saint Gobain | SE-200 | Phthalate-Free Chemical Inert Transfer Tubing | 3/4" ID x 1" OD x 1/8" Wall | 50' Package Length
No by the foot sales. This is a Packaged Length product.
Package Quantity: 50 FT
Buy more, save moreDiscounts applied in cart/checkout.
Thermoplastic Elastomer Flexible Tubing
Versilon® SE-200 Tubing
Offering flexibility, glass-like clarity and outstanding bend radius, Versilon® SE-200 tubing can handle many applications where flexible tubing of the past could not be used. Its FEP inner liner provides the ultimate in chemical resistance and can accommodate a wide variety of fluids, from corrosives to MEK-based solvents. The inert liner limits the potential of fluid contamination during transfer.
1

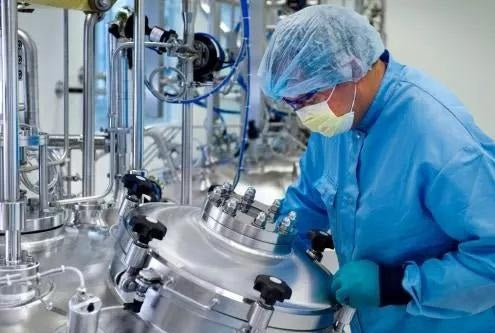

What is this product used for?
- Chemical processing
- Adhesive transfer lines
- Semiconductor processing
- Ink and toner feed lines
- Fertilizer and pesticide distribution
- Paint and solvent production and packaging
- Photographic processing equipment
2
What are the key specifications?
Tube
FEP
Cover
Thermoplastic Elastomer
Reinforcement
None
Colors
Clear
Maximum Recommended Operating Temp °F (°C)
165°F (74°C)
Brittleness by Impact Temp., °F (°C)
-32°F (-36°C)
Specifications
N/A
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Crystal clarity.
- Chemically resistant and inert.
- Non-contaminating fluid path.
- Contains no BPA or phthalates.
- Improved flexibility when compared to rigid fluoropolymer tubing.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI)* |
Max. Working Pressure at 160 deg. F (PSI)* |
Length |
|---|---|---|---|---|---|---|---|
| AJD00002 | 1/16" | 1/8" | 1/32" | 1/2" | 100 PSI | 45 PSI | 50ft |
| AJD00007 | 1/8" | 1/4" | 1/16" | 1" | 85 PSI | 40 PSI | 50ft |
| AJD00012 | 3/16" | 5/16" | 1/16" | 1-1/2" | 75 PSI | 38 PSI | 50ft |
| AJD00017 | 1/4" | 3/8" | 1/16" | 2" | 55 PSI | 35 PSI | 50ft |
| AJD00028 | 3/8" | 9/16" | 3/32" | 3-1/2" | 50 PSI | 25 PSI | 50ft |
| AJD00038 | 1/2" | 3/4" | 1/8" | 4" | 45 PSI | 18 PSI | 50ft |
| AJD00053 | 3/4" | 1" | 1/8" | 4-1/2" | 30 PSI | 12 PSI | 50ft |
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® SE-200 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
30
Tubing Construction:
Specifications and Approvals:
