Versilon™ F-5500-A | Dry Cleaning Fluid Line & Solvent Recovery Tubing
Versilon® F-5500-A, peristaltic pump tubing from Saint-Gobain provides excellent resistance to corrosive chemicals, oils, fuels, solvents, and most mineral acids.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $477.10 |
| 15–29 | $431.42 |
| 30+ | $406.04 |

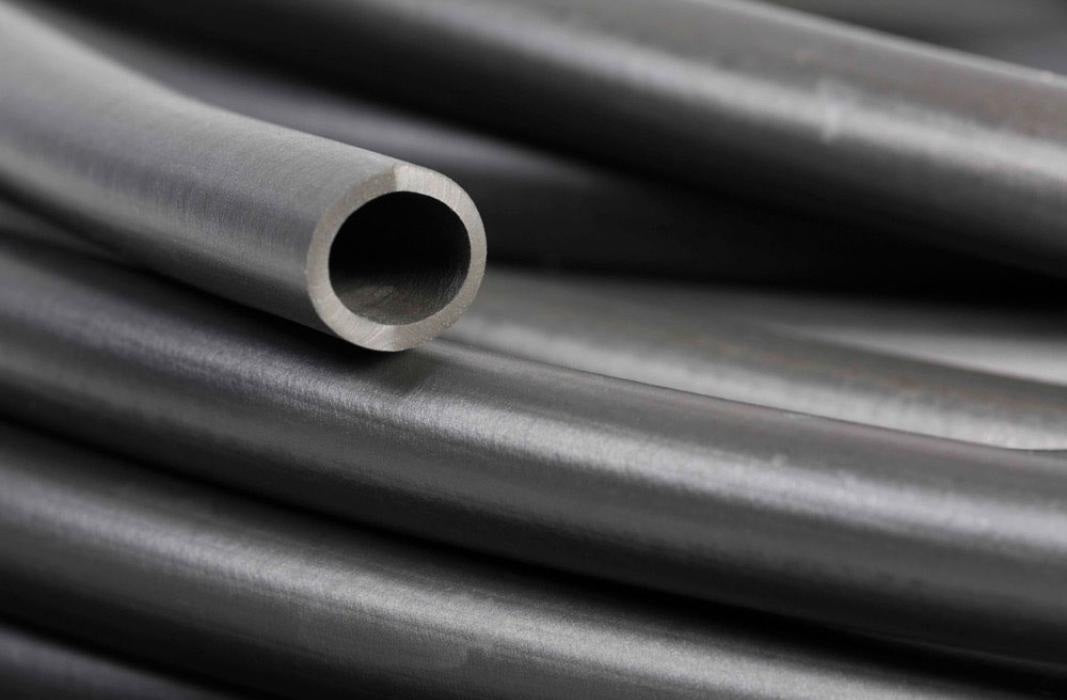

Versilon™ F-5500-A Tubing
Made of a proprietary fluoroelastomer, Versilon® F-5500-A tubing has both the physical and chemical characteristics that make it ideal for severe environments, such as dry cleaning fluid lines and solvent recovery systems, where other flexible tubes fail. Its opaque black color helps protect light-sensitive materials being transferred and will not prematurely crack and age when exposed to ozone, sun and weather.
1
What is this product used for?
- Solvent recovery systems
- Process monitoring equipment
- Peristaltic pumping of concentrated acids
- O-rings, seals and gasketing
- Caustic hot air exhaust and sampling
- Dry cleaning fluid lines
- Chemical processing
- Fuel lubrication lines in high temperature equipment
2
What are the key specifications?
Fluoroelastomer
Fluoroelastomer
None
Black
400°F (204°C)
-60°F (-51°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Provides continuous service at temperatures up to 400°F (204°C).
- Excellent resistance to corrosive chemicals, oils, fuels and solvents.
- Resists ozone, sunlight, and weathering.
- Opaque black color helps protect light-sensitive fluids.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI)* |
Max. Suggested Working Pressure at 275 deg. F (PSI)* |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 275 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AGN00002 | 1/16" | 1/8" | 1/32" | 1/4" | 18 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AGN00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 13 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AGN00012 | 3/16" | 5/16" | 1/16" | 3/4" | 15 PSI | 9 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AGN00017 | 1/4" | 3/8" | 1/16" | 1" | 13 PSI | 8 PSI | 25.0 in. Hg | 20.0 in. Hg | 50ft |
| AGN00022 | 5/16" | 7/16" | 1/16" | 1-1/4" | 11 PSI | 6 PSI | 15.0 in. Hg | 10.0 in. Hg | 50ft |
| AGN00027 | 3/8" | 1/2" | 1/16" | 2" | 10 PSI | 5 PSI | 10.0 in. Hg | 5.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ F-5500-A Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
