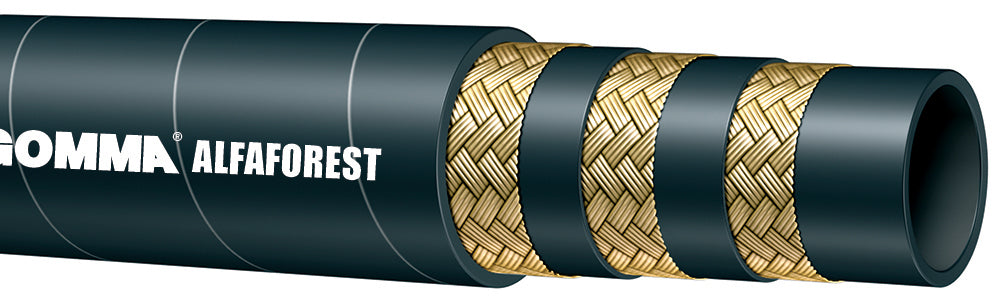

AF3B-06 Alfagomma Alfaforest by Kuriyama | AF3B Series | Minetuff Hose for Hydraulic Systems | 3 Wire Braid | 3/8" ID | 0.85" OD | 7280 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Hydraulic system with petroleum or water/glycol based fluids, fuel, lubricating oils. Specially designed for ultra low temperature applications | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | MSHA IC-152/16 Approved Flame Resistance | Tube: | Oil resistant ultra low temperature synthetic rubber |
| Reinforcement: | Three high tensile steel braids | Cover: | Oil, water, ozone and ultra low temperature resistant synthetic rubber |
| Service Temperature Range: | -67°F (-55°C) to +212°F (+100°C) constant operation. | Air Maximum Temperature: | +160°F (+70°C) |
| Branding: | ALFAGOMMA ALFAFOREST MINETUFF ID…WP MPa 50 (7280 PSI)... MSHA IC-152/16 - Q/YR - MADE IN ITALY | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| AF3B-06 | 3/8" | 9.5mm | 0.85" | 21.7mm | 7280 PSI | 4.7" | 119.4mm | 0.52 lbs/ft |
