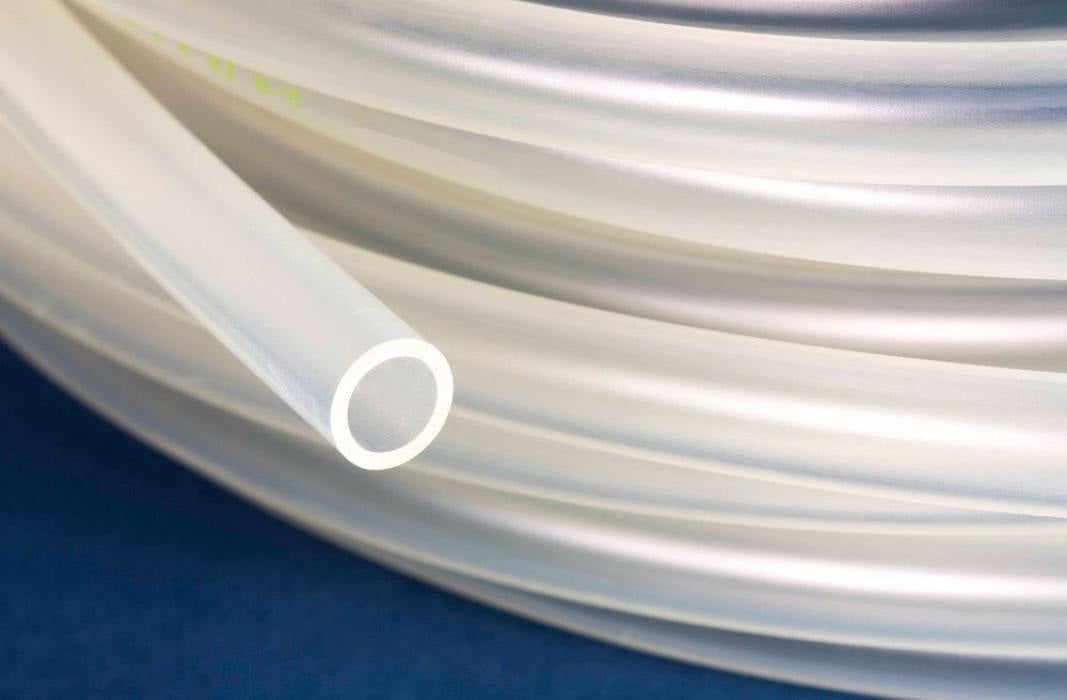

AE300038 Versilon™ by Saint Gobain | Formulation 2001 | Plasticizer-Free Chemical Resistant Pump Tubing | 1/2" ID x 3/4" OD x 1/8" Wall | 50' Package Length
Package Quantity: 50 FT
Versilon® 2001 | Plasticizer-Free Chemical Resistant Pump Tubing
Versilon® 2001 tubing is uniquely engineered to provide flexibility, chemical resistance and extended pump life in a clear, plasticizer/oil-free tubing product. It is ideal for a broad range of demanding applications including peristaltic pump systems, soap and detergent dispensing, ink transfer, water purification lines, food and beverage, and chemical transfer.
1
What is this product used for?
- Chemical transfer
- Peristaltic pumps
- Soap and detergent dispensing
- Ink transfer
- Water purification lines
- Food and beverage
- Analytical instruments
- Ideal for condensers, incubators, desiccators, gas, and drain lines
2
What are the key specifications?
Plasticizer/Oil-Free Thermoplastic Elastomer
Plasticizer/Oil-Free Thermoplastic Elastomer
None
Clear
135°F (57°C)
-108°F (-78°C)
Meets the requirements of FDA 21 CFR, 177.2600 for food contact applications.
Not intended as an implant material!
3
What are the main product features?
- Plasticizer and oil free – does not contaminate fluids.
- Superior flex life in peristaltic pumps.
- Chemically resistant to a wide range of fluids.
- Temperature resistant from -108°F to 135°F.
- Clear for easy visual flow monitoring.
- Meets the requirements of FDA 21 CFR, 177.2600 for food contact applications.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
|---|---|---|---|---|---|---|
| AE300003 | 1/16" | 3/16" | 1/16" | 1/4" | 45 PSI | 29.9 in. Hg |
| AE300007 | 1/8" | 1/4" | 1/16" | 1/2" | 30 PSI | 29.9 in. Hg |
| AE300012 | 3/16" | 5/16" | 1/16" | 1/2" | 22 PSI | 29.9 in. Hg |
| AE300017 | 1/4" | 3/8" | 1/16" | 1" | 17 PSI | 29.9 in. Hg |
| AE300022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 14 PSI | 25.0 in. Hg |
| AE300027 | 3/8" | 1/2" | 1/16" | 2" | 12 PSI | 15.0 in. Hg |
| AE300038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 16 PSI | 29.9 in. Hg |
| AE300046 | 5/8" | 7/8" | 1/8" | 2-1/2" | 13 PSI | 25.0 in. Hg |
| AE300053 | 3/4" | 1" | 1/8" | 3" | 11 PSI | 15.0 in. Hg |
| AE300064 | 1" | 1-3/8" | 3/16" | 3-3/4" | 13 PSI | 17.0 in. Hg |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon® 2001 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Additional Product Data:
