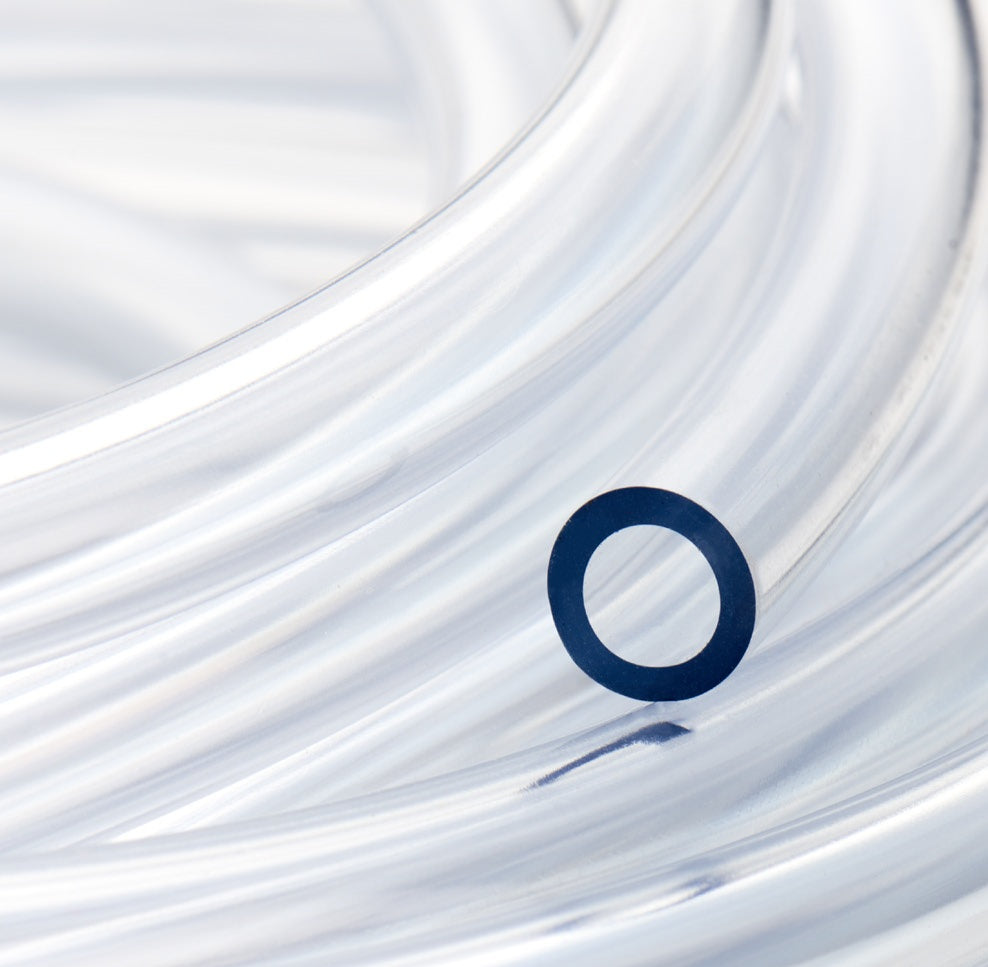

ADF00005 Tygon® by Saint Gobain | ND 100-65 | Medical/Surgical Device Tubing | 3/32" ID x 7/32" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® ND 100-65 | Medical/Surgical Device Tubing
The physical properties of Tygon ND 100-65 make it an ideal choice for dialysis, drug delivery, respiratory therapy, diagnostic drain, and peristaltic pumps for various fluids.
No by the foot sales. This is a Packaged Length product.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.05 |
| 40–79 | $46.16 |
| 80+ | $43.45 |
Discounts applied in cart/checkout.
Thermoplastic Tubing
Tygon® ND 100-65 | Medical/Surgical Device Tubing
Tygon® ND 100-65 tubing was engineered for optimal performance in medical device applications. This tubing is clear for easy visualization of fluid flow, has a robust portfolio of biocompatibility characteristics, and is easy to bond and weld.
1
What is this product used for?
- Blood and IV solutions
- Chemotherapy drug delivery
- Diagnostic equipment, IVDs
- Dialysis equipment
- Minimally invasive devices
- Peristaltic pumps
- Respiratory therapy
2
What are the key specifications?
Tube
N/A
Cover
N/A
Reinforcement
None
Colors
Clear
Maximum Recommended Operating Temp. °F (°C)
165°F (74°C)
Brittleness by Impact Temp. °F (°C)
-44°F (-42°C)
Specifications
Meets the requirements of various ISO 10993 and USP tests (e.g., ISO 10993-3, ISO-10993-4, ISO 10993-5, ISO-10993-6, ISO 10993-11, ISO 10993-23, USP <88>.
WARNING:
Not intended as an implant material!
3
What are the main product features?
- Meets criteria of various ISO 10993 and USP tests.
- Regular evaluations to ensure REACH compliance.
- Crystal clear for easy visualization of fluid flow.
- Effectively bonded/welded using various methods.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI)* |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ADF00001 | 1/32" | 3/32" | 1/32" | 1/8" | 100 PSI | 29.9 in. Hg | 50ft |
| ADF00002 | 1/16" | 1/8" | 1/32" | 1/4" | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00003 | 1/16" | 3/16" | 1/16" | 1/8" | 100 PSI | 29.9 in. Hg | 50ft |
| ADF00004 | 3/32" | 5/32" | 1/32" | 3/8" | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00005 | 3/32" | 7/32" | 1/16" | 1/4" | 70 PSI | 29.9 in. Hg | 50ft |
| ADF00006 | 1/8" | 3/16" | 1/32" | 1/2" | 30 PSI | 25 in. Hg | 50ft |
| ADF00007 | 1/8" | 1/4" | 1/16" | 3/8" | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00009 | 5/32" | 7/32" | 1/32" | 3/4" | 25 PSI | 15 in. Hg | 50ft |
| ADF00010 | 5/32" | 9/32" | 1/16" | 1/2" | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00011 | 3/16" | 1/4" | 1/32" | 1" | 20 PSI | 10 in. Hg | 50ft |
| ADF00012 | 3/16" | 5/16" | 1/16" | 5/8" | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00013 | 3/16" | 3/8" | 3/32" | 1/8" | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00016 | 1/4" | 5/16" | 1/32" | 1-5/8" | 18 PSI | 5 in. Hg | 50ft |
| ADF00017 | 1/4" | 3/8" | 1/16" | 1" | 30 PSI | 25 in. Hg | 50ft |
| ADF00018 | 1/4" | 7/16" | 3/32" | 3/4" | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00019 | 1/4" | 1/2" | 1/8" | 5/8" | 55 PSI | 29.9 in. Hg | 50ft |
| ADF00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 25 PSI | 15 in. Hg | 50ft |
| ADF00023 | 5/16" | 1/2" | 3/32" | 1" | 35 PSI | 29.9 in. Hg | 50ft |
| ADF00024 | 5/16" | 9/16" | 1/8" | 7/8" | 45 PSI | 29.9 in. Hg | 50ft |
| ADF00027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 20 PSI | 10 in. Hg | 50ft |
| ADF00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 30 PSI | 25 in. Hg | 50ft |
| ADF00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 40 PSI | 29.9 in. Hg | 50ft |
| ADF00033 | 7/16" | 5/8" | 3/32" | 1-3/4" | 25 PSI | 18 in. Hg | 50ft |
| ADF00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 18 PSI | 6 in. Hg | 50ft |
| ADF00037 | 1/2" | 11/16" | 3/32" | 2-1/8" | 25 PSI | 15 in. Hg | 50ft |
| ADF00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 30 PSI | 25 in. Hg | 50ft |
| ADF00041 | 9/16" | 3/4" | 3/32" | 2-1/2" | 20 PSI | 10 in. Hg | 50ft |
| ADF00045 | 5/8" | 13/16" | 3/32" | 3" | 20 PSI | 9 in. Hg | 50ft |
| ADF00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 25 PSI | 15 in. Hg | 50ft |
| ADF00053 | 3/4" | 1" | 1/8" | 3-1/4" | 20 PSI | 10 in. Hg | 50ft |
| ADF00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 20 PSI | 8 in. Hg | 50ft |
| ADF00062 | 1" | 1-1/4" | 1/8" | 5-1/8" | 18 PSI | 4 in. Hg | 50ft |
| ADF02002 | 1/16" | 1/8" | 1/32" | 1/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ADF02004 | 3/32" | 5/32" | 1/32" | 3/8" | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02006 | 1/8" | 3/16" | 1/32" | 1/2" | 30 PSI | 25 in. Hg | 100ft |
| ADF02007 | 1/8" | 1/4" | 1/16" | 3/8" | 55 PSI | 29.9 in. Hg | 100ft |
| ADF02010 | 5/32" | 9/32" | 1/16" | N/A | N/A | N/A | 100ft |
| ADF02012 | 3/16" | 5/16" | 1/16" | 5/8" | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02017 | 1/4" | 3/8" | 1/16" | 1" | 30 PSI | 25 in. Hg | 100ft |
| ADF02018 | 1/4" | 7/16" | 3/32" | 3/4" | 45 PSI | 29.9 in. Hg | 100ft |
| ADF02022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 25 PSI | 15 in. Hg | 100ft |
| ADF02027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 20 PSI | 10 in. Hg | 100ft |
| ADF02029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 40 PSI | 29.9 in. Hg | 100ft |
| ADF02037 | 1/2" | 11/16" | 3/32" | 2-1/8" | 25 PSI | 15 in. Hg | 100ft |
| ADF02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 30 PSI | 25 in. Hg | 100ft |
Safety factor of 5:1 ratio of burst pressure to working pressure.
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® ND 100-65 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
70
Tubing Construction:
Specifications and Approvals:
