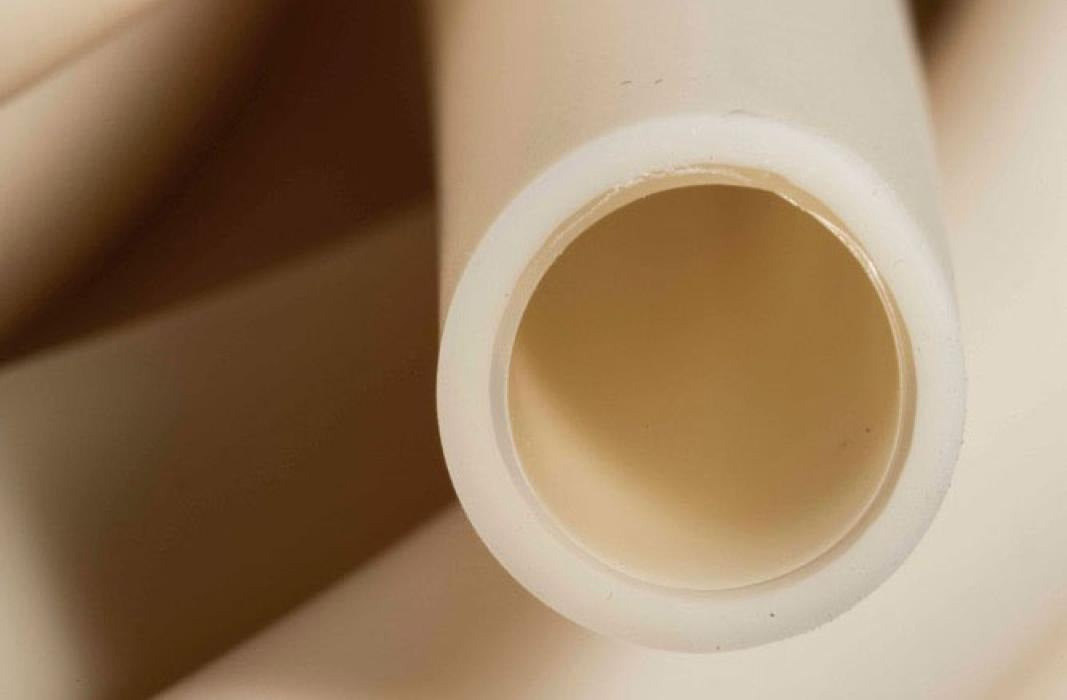

AD300017 Tygon® Chemical by Saint Gobain | Long Pump Life Chemical Dispensing Tubing | 1/4" ID x 3/8" O.D x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® Chemical | Long Pump Life Chemical Dispensing Tubing
Tygon® Chemical tubing from Saint-Gobain is a high-performance, co-extruded product that is ideal for soap and detergent dispensing applications.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $201.93 |
| 20–59 | $182.60 |
| 60+ | $171.86 |
Tygon® Chemical | Long Pump Life Chemical Dispensing Tubing
Tygon® Chemical tubing from Saint-Gobain is a high-performance, co-extruded product that is ideal for soap and detergent dispensing applications. It is formulated to provide the exact amount of chemical resistance necessary to extend the tube life inside of a peristaltic pump. This tubing features an inert, ultra-smooth, plasticizer-free bore that resists the absorption/adsorption of aqueous fluids, as well as an outer jacket that is extremely flexible, which reduces downtime due to pump tubing failure. This product is virtually unaffected by acids, bases, salts, and ketones, and it can be used in a wide range of chemical applications without the use of multiple tubes.
1
What is this product used for?
- Soap and detergent dispensing
- Commercial laundry chemical dispensing
- Warewash chemical dispensing
- Facility cleaning chemical dispensing
2
What are the key specifications?
Inert Ultra-smooth, Plasticizer-free
N/A
None
Cream
165°F (74°C)
-75°F (-60°C)
Complies with applicable FDA food additive regulations for its intended use.
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature range of -75°F to 165°F.
- Superior chemical resistance.
- Plasticizer-free bore.
- Meets FDA criteria for food contact.
- Resists absorption/adsorption of aqueous fluids.
- Virtually unaffected by chemical sanitizers and cleaners.
- Can be autoclaved for up to five cycle times without affecting its overall service life.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Suggested Working Pressure at 73 deg. F (PSI) |
Max. Suggested Working Pressure at 60 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 160 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AD300007 | 1/8" | 1/4" | 1/16" | 1/2" | 33 PSI | 14 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AD300012 | 3/16" | 5/16" | 1/16" | 1" | 29 PSI | 10 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AD300017 | 1/4" | 3/8" | 1/16" | 1-1/4" | 20 PSI | 8 PSI | 29.9 in. Hg | 15.0 in. Hg | 50ft |
| AD300027 | 3/8" | 1/2" | 1/16" | 2" | 14 PSI | 5 PSI | 25.0 in. Hg | 5.0 in. Hg | 50ft |
| AD300038 | 1/2" | 3/4" | 1/8" | 2-1/4" | 16 PSI | 8 PSI | 29.9 in. Hg | 25.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® Chemical Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
