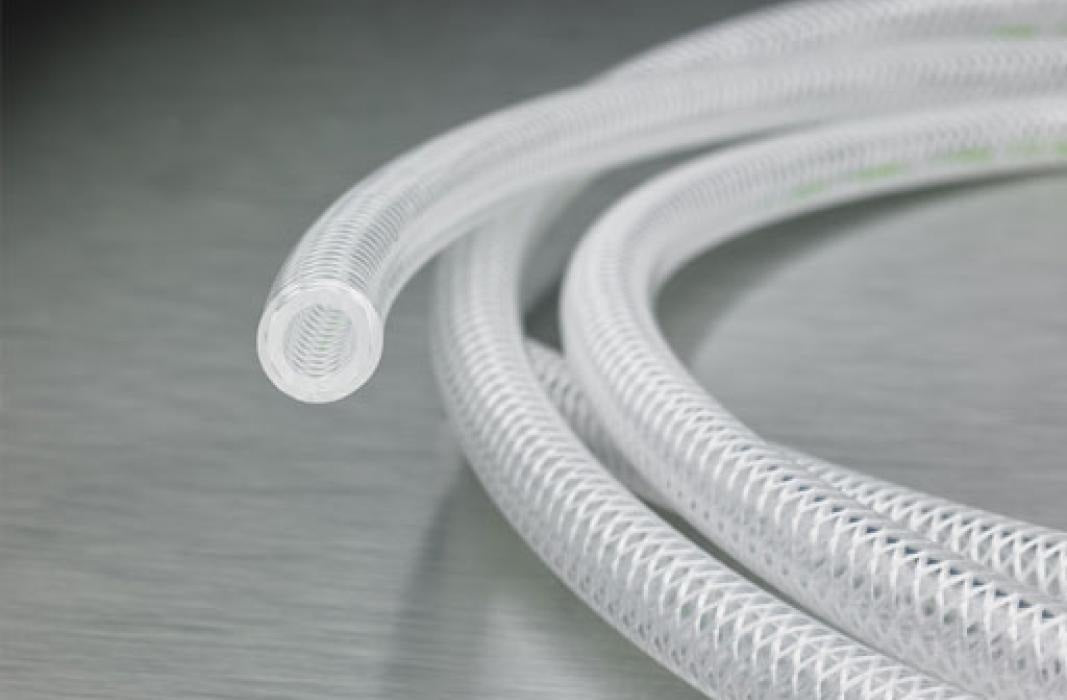

ACX42064 Tygon® by Saint Gobain | Formulation 2475 I.B. | High-Purity Pressure Tubing | 1" ID x 1 3/8" OD x 3/16" Wall | 25' Package Length
Saint Gobain
Tygon® 2475 I.B. | High-Purity Pressure Tubing
Tygon® 2475 I.B. high pressure thermoplastic tubing is engineered with textile reinforcement to withstand higher pressures.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $434.85 |
| 15–29 | $393.22 |
| 30+ | $370.09 |
Tygon® 2475 High-Purity Tubing
Tygon® 2475 I.B. high pressure thermoplastic tubing is engineering with textile reinforcement to withstand higher pressures. Using the same smooth inner fluid contact layer as Tygon® 2475, Tygon 2475 I.B. may be successfully used for higher pressure applications such as single use UF/DF systems and chromatography systems.
1
What is this product used for?
- Deionized water systems
- Aseptic fill lines
- Cell harvest and media processing
- Water for Injection (WFI) transport
- Preservative fill lines
- Chromatography and UF/DF systems
- Pharmaceutical and cosmetic processing
- Chemical transfer
2
What are the key specifications?
Plasticizer-Free Polymer
Plasticizer-Free Polymer
Textile Braid
Clear
125°F (52°C)
-94°F (-70°C)
Meets the requirements of USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
Not intended as an implant material!
3
What are the main product features?
- Extremely low sorption to aqueous fluids.
- Plasticizer-free.
- Tough braid reinforcement for elevated working pressures.
- Meets USP Class VI criteria.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max Working Pressure at 73°F / 23°C PSI |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ACX00019 | 1/4" | 1/2" | 1/8" | 3/8" | 225 PSI | 29.9 in. Hg | 50ft |
| ACX00029 | 3/8" | 5/8" | 1/8" | 1" | 210 PSI | 29.9 in. Hg | 50ft |
| ACX00038 | 1/2" | 3/4" | 1/8" | 1" | 230 PSI | 29.9 in. Hg | 50ft |
| ACX00046 | 5/8" | 7/8" | 1/8" | 1-3/4" | 135 PSI | 29.9 in. Hg | 50ft |
| ACX00054 | 3/4" | 1-1/16" | 5/32" | 1-1/4" | 135 PSI | 29.9 in. Hg | 50ft |
| ACX42064 | 1" | 1-3/8" | 3/16" | 3-1/2" | 125 PSI | 25.0 in. Hg | 25ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® 2475 I.B. Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
