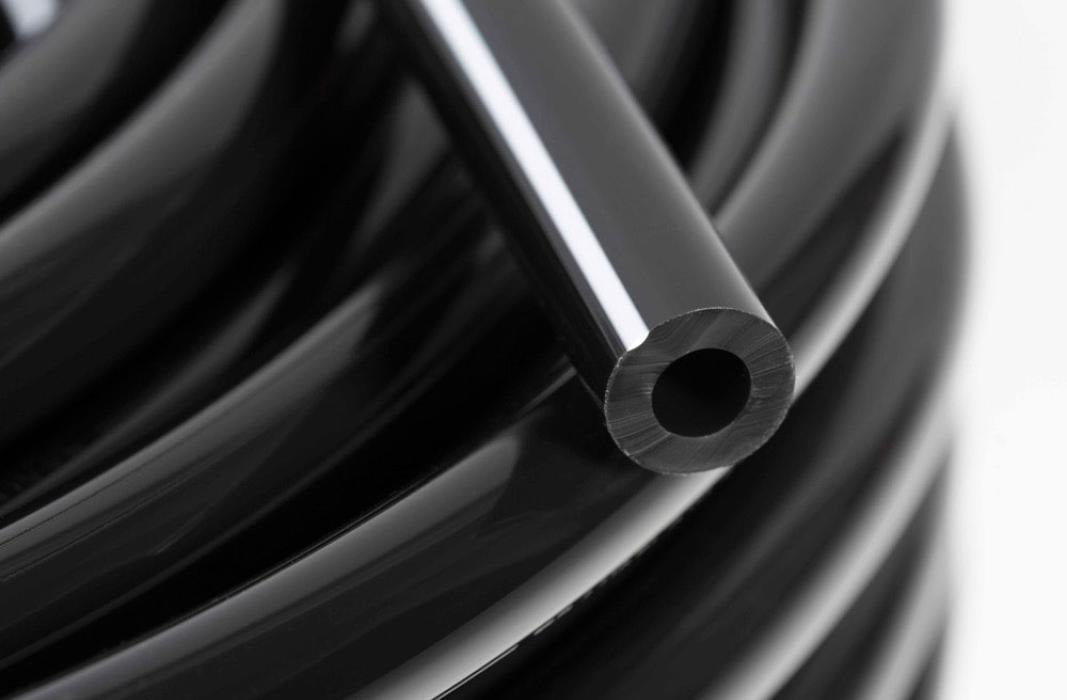

ACS02021 Tygon® by Saint Gobain | A24-C | Single Tube Black Vacuum Air Tubing | 9/32" ID x 17/32" OD x 1/8" Wall | 100' Package Length
Minimum Order Quantity: 28 Units
Saint Gobain
Tygon® A24-C | Black Vacuum Tubing for Milking Equipment
Tygon® A24-C tubing from Saint-Gobain is designed specifically for the dairy industry and is ideal for raw milk transport lines and dairy processing.
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $166.23 |
| 30–59 | $150.31 |
| 60+ | $141.47 |
Tygon® A24-C | Black Vacuum Tubing for Milking Equipment
Tygon® A24-C tubing from Saint-Gobain is ideal for raw milk transport lines and dairy processing. It features a smooth inner surface to help prevent blockages that can restrict airflow – reducing the need for maintenance. This phthalate-free air transport tubing is designed to work with our clear, flexible Tygon® M-34-R tubing that eliminates bacteria growth within milk transport lines. When combined, the two products create a vacuum of air that produces a continuous, reliable flow during the milking process.
1
What is this product used for?
- Raw milk transport lines
- Dairy processing
2
What are the key specifications?
N/A
N/A
None
Black
165°F (74°C)
-32°F (-36°C)
N/A
Not intended as an implant material!
3
What are the main product features?
- Holds full vacuum at room temperature.
- Will not crack and age like rubber tubing.
- Lightweight and flexible for quick installation.
- Non-wetting properties allow easy cleaning and complete drainage.
- Durability for long and reliable service.
- Contains no BPA or phthalates.
- To be used in conjunction with Tygon® M-34-R tubing.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73°F (PSI) |
Vacuum Rating at 73°F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ACS02019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACS02021 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACS02029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 100ft |
| ACS02034 | 7/16" | 11/16" | 1/8" | 1-3/8" | 39 PSI | 29.9 in. Hg | 100ft |
| ACS02038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 26.0 in. Hg | 100ft |
| Twin Tube | |||||||
| ACS02916 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 100ft |
| ACS02917 | 9/32" | 17/32" | 1/8" | 3/4" | 55 PSI | 29.9 in. Hg | 100ft |
| ACS02918 | 3/8" | 5/8" | 1/8" | 1-1/8" | 55 PSI | 29.9 in. Hg | 100ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A24-C Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
