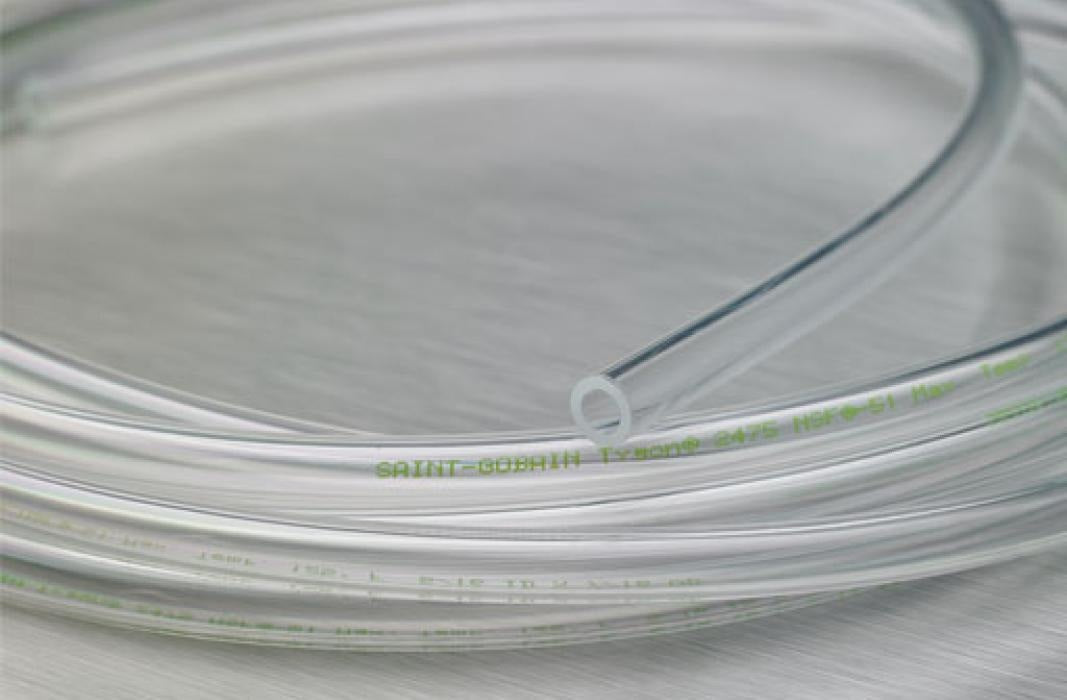

ACG00007 Tygon® by Saint Gobain | Formulation 2475 | High Purity Tubing | 1/8" ID x 1/4" O.D x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® 2475 | High-Purity Tubing
Tygon® 2475 plasticizer free tubing is formulated without the addition of softening agents or oils, reducing potential contamination of sensitive fluids in biopharmaceutical applications.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $105.50 |
| 20–59 | $95.40 |
| 60+ | $89.78 |
Tygon® 2475 High-Purity Tubing
Tygon® 2475 plasticizer free tubing is formulated without the addition of softening agents or oils, reducing potential contamination of sensitive fluids in biopharmaceutical applications. The absence of plasticizers allows the tubing to stand up to aggressive acids, bases and solvents that would react with or extract plasticizer from a standard PVC tube. The crystal clear construction of Tygon® 2475 tubing allows visual inspection of fluid path to ensure consistency of flow. Tygon® 2475 has lower gas permeation than standard silicone tubing, protecting sensitive fluids from moisture loss and oxidation.
1
What is this product used for?
- Sterile Filling and Dispensing Systems
- Diagnostic Equipment
- Laboratory Analytical Instrumentation
- Infusion Sets for Parenterals and Drugs
- Cell and Tissue Culture Transport
- Fluid and Media Transfer Under Vacuum
2
What are the key specifications?
Plasticizer-Free Polymer
Plasticizer-Free Polymer
None
Clear
125°F (52°C)
-94°F (-70°C)
Meets the requirements of USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
Not intended as an implant material!
3
What are the main product features?
- Exceptionally low gas permeation compared to silicone.
- Smooth inner surface inhibits particulate entrapment.
- Highly resistant to aggressive cleaners and sanitizers.
- Free from added plasticizers or oils.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Suggested Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| ACG00003 | 1/16" | 3/16" | 1/16" | 1/4" | 60 PSI | 29.9 in. Hg | 50ft |
| ACG00007 | 1/8" | 1/4" | 1/16" | 3/8" | 45 PSI | 29.9 in. Hg | 50ft |
| ACG00012 | 3/16" | 5/16" | 1/16" | 5/8" | 35 PSI | 29.9 in. Hg | 50ft |
| ACG00017 | 1/4" | 3/8" | 1/16" | 1" | 25 PSI | 29.9 in. Hg | 50ft |
| ACG00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 17 PSI | 29.9 in. Hg | 50ft |
| ACG00027 | 3/8" | 1/8" | 1/16" | 1-5/8" | 15 PSI | 25.0 in. Hg | 50ft |
| ACG00038 | 1/2" | 3/4" | 1/8" | 1-7/8" | 20 PSI | 29.9 in. Hg | 50ft |
| ACG00046 | 5/8" | 7/8" | 1/8" | 2-7/8" | 17 PSI | 29.9 in. Hg | 50ft |
| ACG00053 | 3/4" | 1" | 1/8" | 3" | 16 PSI | 29.9 in. Hg | 50ft |
| ACG42064 | 1" | 1-3/8" | 3/16" | 3" | 19 PSI | 29.9 in. Hg | 25ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® 2475 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
