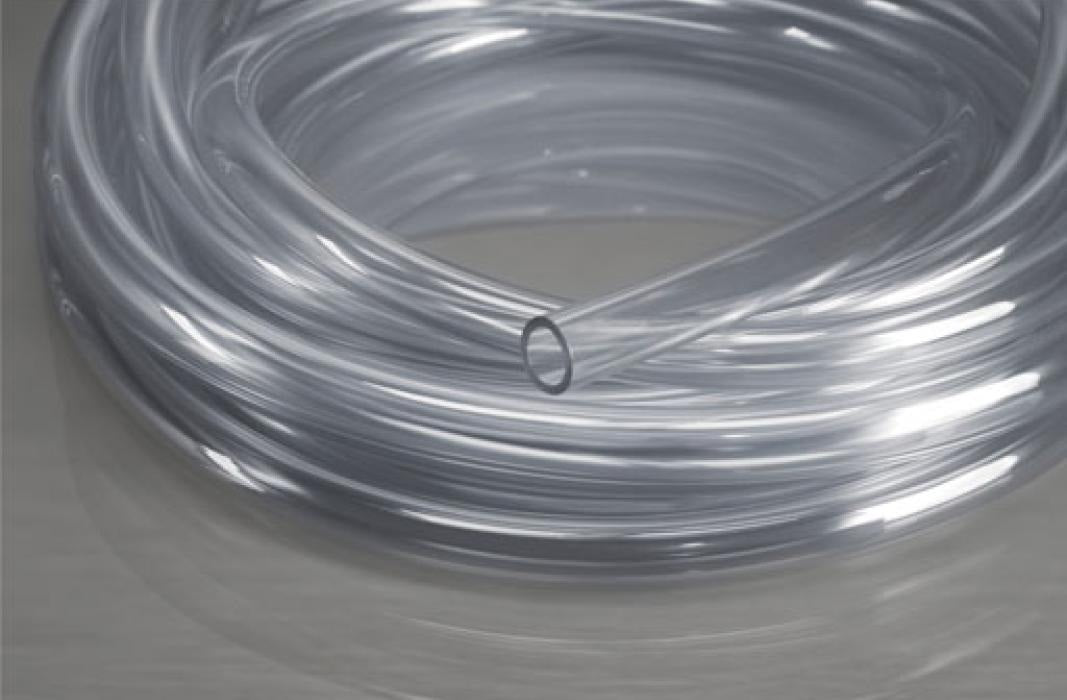

ACF1S1502 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Metric Tubing | 2mm ID x 4mm OD x 1mm Wall | 15m Package Length
Saint Gobain
Tygon S3™ E-3603 | Non-DEHP Phthalate-Free Laboratory Metric Tubing
Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion.
For instrumentation connection, vent, drain, and other general laboratory applications.
Package Quantity: 15 M
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.93 |
| 40–79 | $33.40 |
| 80+ | $31.43 |
Tygon S3™ E-3603 | Flexible Fuel Tubing
Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion. As a tubing for instrumentation connection, vent, drain and other general laboratory applications, Tygon S3™ E-3603 Tubing offers superior life, which minimizes the labor and expense of replacement. It can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi, 121°C) and ethylene oxide.
1
What is this product used for?
- General laboratory connections
- Food & beverage
- Biopharmaceutical analysis
- Analytical instrumentation
- Vacuum pumps
- Ideal for condensers, incubators, desiccators, gas lines and drain lines
2
What are the key specifications?
N/A
N/A
None
Clear
165°F (74°C)
-51°F (-46°C)
US FDA food contact criteria
(EU) 10/2011 and (EC) 1935/2004
Japanese Food Sanitation Law 370/1959
NSF®-51, Food Equipment Materials
USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
REACH (EC) 1907/2006
Not intended as an implant material!
3
What are the main product features?
- Bio-based formulation reduces environmental impact.
- Lot-to-lot consistency for reproducible results.
- Non-toxic and non-contaminating.
- Smooth inner wall.
- Slips easily over fittings and grips securely for simple lab set-ups.
- No BPA or phthalates intentionally added.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (mm) |
Outside Diameter (mm) |
Wall Thickness (mm) |
Length (m) |
Min. Bend Radius (mm) |
Max. Working Pressure Bars at 23ºC |
Vacuum Rating mm of Mercury at 23ºC |
|---|---|---|---|---|---|---|---|
| ACF1S1502 | 2mm | 4mm | 1mm | 15m | 7mm | 2.5 Bar | 760mm Hg |
| ACF1S151 | 3mm | 5mm | 1mm | 15m | 13mm | 1.7 Bar | 760mm Hg |
| ACF1S1518 | 4mm | 6mm | 1mm | 15m | 16mm | 1.4 Bar | 533mm Hg |
| ACF1S1503 | 5mm | 8mm | 1.5mm | 15m | 19mm | 1.6 Bar | 760mm Hg |
| ACF1S1504 | 6mm | 9mm | 1.5mm | 15m | 22mm | 1.4 Bar | 559mm Hg |
| ACF1S1506 | 8mm | 12mm | 2mm | 15m | 29mm | 1.4 Bar | 533mm Hg |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon S3™ E-3603 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
