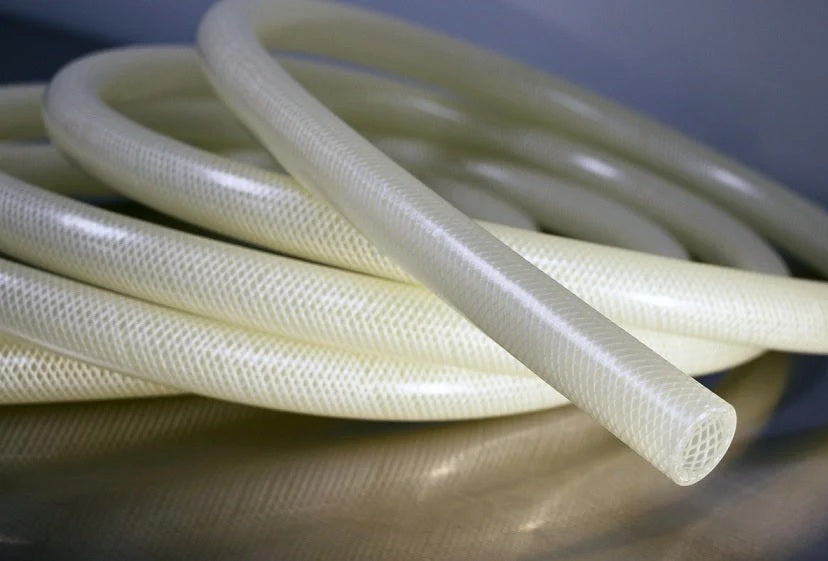

ACC422253 by Saint Gobain | C-Flex® | TPE Braided Biopharm Tubing | 1/8" ID x 0.355" OD x 0.115" Wall | 25' Package Length
Saint Gobain
C-Flex® | TPE Braided Biopharm Tubing
C-Flex® Braided tubing is specifically designed to meet the critical demands of high pressure fluid processing applications in pharmaceutical and biopharmaceutical for fluid process.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $108.27 |
| 20–59 | $97.90 |
| 60+ | $92.14 |
C-Flex® | TPE Braided Biopharm Tubing
C-Flex® Braided is produced using the C-Flex® 082 translucent ADCF (Animal Derived Component Free) material formulation, a TPE material commonly approved for use in many biopharmaceutical applications. Reinforcement is provided by a polyester fiber that provides increased pressure rating and improved bend radius. It is compatible with steam sterilization and gamma-irradiation. C-Flex® Braided tubing is part of a family of TPE tubing offering the widest range of formulations and sizes in the industry including C-Flex® 082 and 374 translucent tubing for fluid flow visibility, and C-Flex® 072 opaque for peristaltic pump applications and transfer of light sensitive fluids.
1
What is this product used for?
- Vessel and tank transfers with elevated pressure requirements.
- High pressure tests such as Filter Integrity Testing.
- Fluid transfer applications needing crush or kink-resistance.
2
What are the key specifications?
Manufactured from C-Flex® 082 thermoplastic materials.
N/A
Braided - Polyester Fiber
Translucent
275°F (135°C)
-85°F (-67°C)
USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
ISO 10993-3 (Ames Genotoxicity)
ISO 10993-11 (Systemic Toxicity, In-Vivo)
ISO 10993-4 (Hemolysis, Indirect)
European Pharmacopeia 3.2.9
Not intended as an implant material!
3
What are the main product features?
- Up to five times higher burst pressures compared to non-braided materials.
- A product validation test summary is available.
- Compatible with autoclave and gamma irradiation.
- Temperature range -67°C to 135°C (-85°F to 275°F).
- Compatible with overmolding technology for single-use systems.
- Ultra-flexible, improved bend radius over non-reinforced tubing.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter |
Outside Diameter |
Wall Thickness |
Min. Bend Radius |
Max. Working Pressure* at 68°F / 20°C |
Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | PSI | bar | ||
| ACC422253 | 0.125" | 3.8mm | 0.355" | 9.02mm | 0.115" | 2.92mm | 0.5" | 12.7mm | 105 PSI | 7.2 bar | 25ft |
| ACC42019 | 0.250" | 6.35mm | 0.500" | 12.70mm | 0.125" | 3.18mm | 1.5" | 38.1mm | 110 PSI | 7.6 bar | 25ft |
| ACC42029 | 0.375" | 9.53mm | 0.625" | 15.88mm | 0.125" | 3.18mm | 2.5" | 63.5mm | 80 PSI | 5.5 bar | 25ft |
| ACC40038 | 0.500" | 12.70mm | 0.750" | 19.05mm | 0.125" | 3.18mm | 3.5" | 88.9mm | 105 PSI | 7.2 bar | 15ft |
| ACC40048 | 0.625" | 15.88mm | 1.000" | 25.40mm | 0.187" | 4.75mm | 4" | 101.6mm | 110 PSI | 7.6 bar | 15ft |
| ACC40053 | 0.625" | - | 1.000" | - | 0.187" | - | 4" | - | - | - | 15ft |
| ACC40055 | 0.750" | 19.05mm | 1.125" | 28.58mm | 0.187" | 4.75mm | 5.5" | 139.7mm | 110 PSI | 7.6 bar | 15ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain C-Flex® TPE Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
