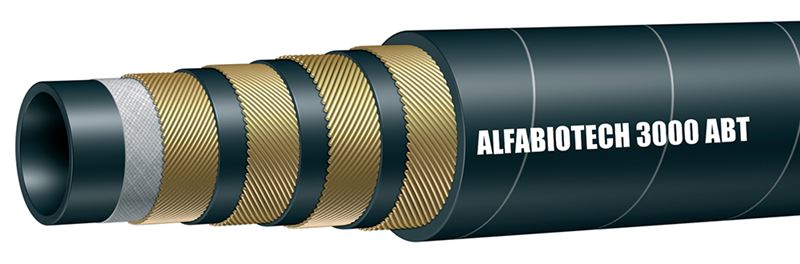

ABT3K-32 Alfagomma by Kuriyama | ABT3K Series | SAE 100R12 | Alfabiotech 3000 Minetuff Hydraulic Hose | 2" ID | 2.63" OD | 3000 PSI | 100ft Length
Kuriyama of America Inc.
Alfagomma | ABT3K Series | SAE 100R12 | Alfabiotech 3000 Minetuff Hydraulic Hose
MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,959.59 |
| 4–9 | $3,791.10 |
| 10+ | $3,369.86 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
| Application: | Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. | SAE Rating: | Exceeds SAE 100R12 all sizes |
|---|---|---|---|
| Other Ratings: | ISO 18752/CC 1,000,000+ impulse cycles all sizes MSHA IC-152/16 Approved Flame Resistance |
Tube: | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Reinforcement: | Four/six high tensile steel spirals. | Cover: | Abrasion, ozone and hydrocarbon resistant synthetic rubber. |
| Service Temperature Range: | -40°F (-40°C) to +250°F (+121°C) | Length: | 200 feet from 1-1/4" to 1-1/2" 100 feet for 2" and 3" |
| Branding: | ALFAGOMMA ALFABIOTECH 3K MINETUFF ... WP 21 MPa (3000 PSI) - ISO 18752/CC - exceeds SAE 100 R12 - MSHA IC-152/16 - MADE IN ITALY | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| ABT3K-32 | 2" | 50.8mm | 2.63" | 66.8mm | 3000 PSI | 22.0" | 558.8mm | 2.69 lbs/ft |
Note: Slim Hole Rotary Hose Working Pressure 5000 psi, Hydraulic Service 3000 psi.
* Minimum burst pressure 4-to-1 hydraulic service, 2.5-to-1 slim hole rotary.
