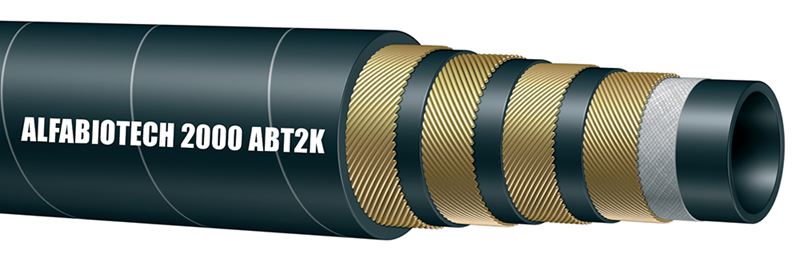

ABT2K-48 Alfagomma by Kuriyama | ABT2K Series | Alfabiotech 2000 Minetuff Hydraulic Hose | 4-Wire | 3" ID | 3.64" OD | 2000 PSI | 100ft Length
Kuriyama of America Inc.
Alfagomma | ABT2K Series | Alfabiotech 2000 Minetuff Hydraulic Hose | 4-Wire
MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 3–5 | $6,528.99 |
| 6+ | $6,251.16 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
| Application: | Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | ISO 18752/CC 1,000,000+ impulse cycles all sizes MSHA IC-152/16 Approved Flame Resistance |
Tube: | Oil resistant synthetic rubber and biodegradable hydraulic fluids. |
| Reinforcement: | Four high tensile steel spirals. | Cover: | Abrasion, ozone and hydrocarbon resistant synthetic rubber. |
| Service Temperature Range: | -40°F (-40°C) to +250°F (+121°C) | ||
| Branding: | Alfagomma Alfabiotech 2K Minetuff 2000 PSI Hydraulic Service - 3200 PSI Slim Hole Rotary Service MSHA IC-152/16 Made in Italy | ||
| Other Features: | |||
|
|||
| Part Number | ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | |
| ABT2K-40 | 2-1/2" | 63.5mm | 3.11" | 79.0mm | 2000 PSI | 28.3" | 718.8mm | 3.33 lbs/ft |
| ABT2K-48 | 3" | 76.2mm | 3.64" | 92.5mm | 2000 PSI | 33.0" | 838.2mm | 3.64 lbs/ft |
Note: Slim Hole Rotary Hose Working Pressure 3200 psi, Hydraulic Service 2000 psi.
* Minimum burst pressure 4-to-1 hydraulic service/2.5-to-1 slim hole rotary.
