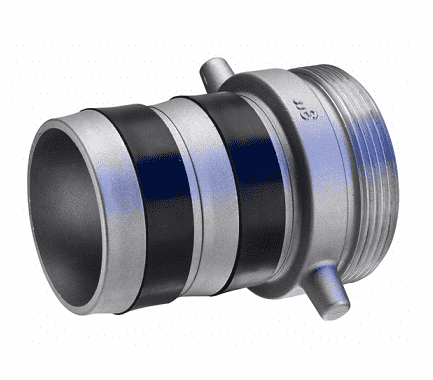

ABM-LF200 by Kuriyama | Pin Lug 2" Hose Shank x 2" Male NPSM Thread | Aluminum

ABM-LF200 by Kuriyama | Pin Lug 2" Hose Shank x 2" Male NPSM Thread | Aluminum

Sale price$9.92

Kuriyama Couplings™ - EZ-Seal Leak Resistant Couplings - Pin Lug Hose Shank Male NPSM Threads - Aluminum

Buy More, Save More!
Quantity Price Each
10–39 $9.32
40–79 $8.43
80+ $7.44
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Hose Barb
  • 2in Male NPSM
Material(s):
  • Aluminum
Applications:
  • Agriculture, Chemicals, Petroleum, Construction, Material Handling
  • Ideally Suited for Layflat Hoses
  • For use with Kuriyama Hoses
Features:
  • Rubber seals - Help prevent leakage.
  • Interchangeability - Part C & E conform to Mil Spec A-A-59326.
  • Versatile - Suitable for use with other PVC and Rubber Hoses.
  • Note: To insure proper sealing attach band clamps directly over rubber seals.
Materials:
  • Aluminum; ASTM B85 Grade 383
Part Number Size Weight (Lbs.)
ABM-LF150 1-1/2 x 1-1/2" 0.22 lbs
ABM-LF200 2" x 2" 0.4 lbs.
ABM-LF300 3" x 3" 1.04 lbs.
ABM-LF400 4" x 4" 1.48 lbs.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
