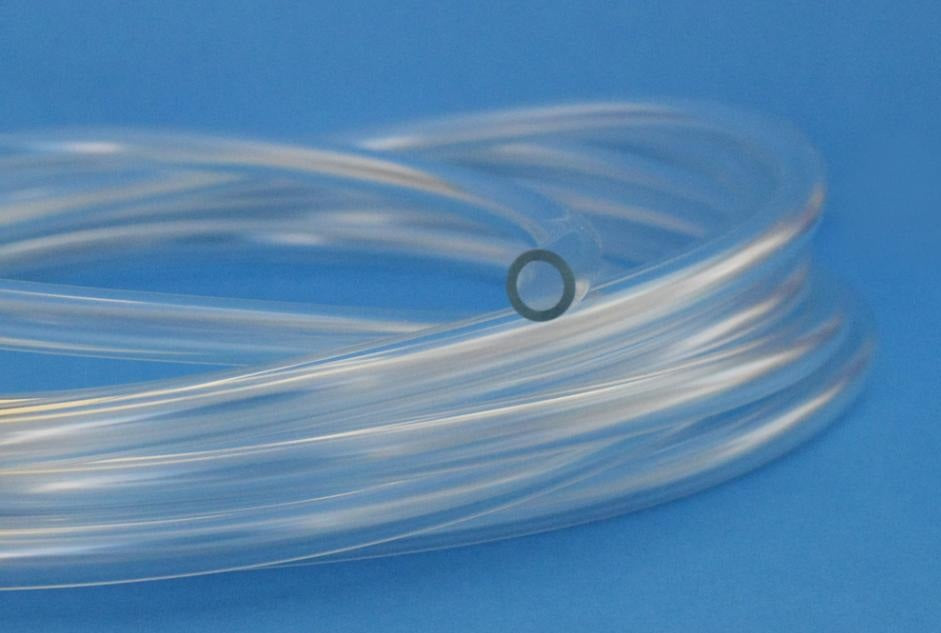

ABH00085 Versilon™ by Saint Gobain | C-219-A | Flexible PVC Chemical Transfer Tubing | 3" ID x 3-1/2" OD x 1/4" Wall | 50' Package Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Versilon® C-219-A
Versilon® C-219-A tubing from Saint-Gobain offers clarity, outstanding flex life, and broad chemical resistance. It is ideal for numerous fluid handling applications and soap transfer systems. This tubing utilizes a Non-DEHP plasticizer and is both REACH and ROHS compliant. Additionally, this product offers a long service life and accommodates a variety conditions such as abrupt corners or other obstructions.
1
What is this product used for?
- Soap and detergent transfer
2
What are the key specifications?
PVC
PVC
None
Clear
74°C (165°F)
-43°C (-45°F)
REACH and ROHS compliant
Not intended as an implant material!
3
What are the main product features?
- Long service life - non-aging, non-oxidizing.
- Smooth inner wall resists build-up.
- Soft and flexible - easy to slip over fittings.
- Tight bend radius.
- Outstanding flex life.
- Broad chemical resistance.
- Contains no BPA or phthalates.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Max. Operating Pressure at 73 deg. F (PSI) |
|---|---|---|---|---|
| ABH02002 | 1/16" | 1/8" | 1/32" | 48 PSI |
| ABH02007 | 1/8" | 1/4" | 1/16" | 50 PSI |
| ABH02012 | 3/16" | 5/16" | 1/16" | 50 PSI |
| ABH02013 | 3/16" | 3/8" | 3/32" | N/A |
| ABH02014 | 3/16" | 7/16" | 1/8" | N/A |
| ABH02017 | 1/4" | 3/8" | 1/16" | 30 PSI |
| ABH02018 | 1/4" | 7/16" | 3/32" | 40 PSI |
| ABH02019 | 1/4" | 1/2" | 1/8" | 46 PSI |
| ABH02022 | 5/16" | 7/16" | 1/16" | 28 PSI |
| ABH02023 | 5/16" | 1/2" | 3/32" | N/A |
| ABH02027 | 3/8" | 1/2" | 1/16" | 22 PSI |
| ABH02028 | 3/8" | 9/16" | 3/32" | 32 PSI |
| ABH02029 | 3/8" | 5/8" | 1/8" | 46 PSI |
| ABH02032 | 7/16" | 9/16" | 1/16" | N/A |
| ABH02033 | 7/16" | 5/8" | 3/32" | N/A |
| ABH02036 | 1/2" | 5/8" | 1/16" | 20 PSI |
| ABH02037 | 1/2" | 11/16" | 3/32" | 26 PSI |
| ABH02038 | 1/2" | 3/4" | 1/8" | 30 PSI |
| ABH02039 | 1/2" | 131/16" | 5/32" | N/A |
| ABH02041 | 9/16" | 3/4" | 3/32" | N/A |
| ABH02045 | 5/8" | 13/16" | 3/32" | N/A |
| ABH02046 | 5/8" | 7/8" | 1/8" | 26 PSI |
| ABH02053 | 3/4" | 1" | 1/8" | 22 PSI |
| ABH02054 | 3/4" | 1-1/16" | 5/32" | N/A |
| ABH02059 | 7/8" | 1-1/8" | 1/8" | N/A |
| ABH00062 | 1" | 1-1/4" | 1/8" | 18 PSI |
| ABH00064 | 1" | 1-3/8" | 3/16" | 26 PSI |
| ABH00065 | 1" | 1-1/2" | 1/4" | 34 PSI |
| ABH00070 | 1-1/4" | 1-5/8" | 3/16" | 22 PSI |
| ABH00071 | 1-1/4" | 1-3/4" | 1/4" | N/A |
| ABH00073 | 1-1/2" | 1-7/8" | 3/16" | N/A |
| ABH00074 | 1-1/2" | 2" | 1/4" | 24 PSI |
| ABH00076 | 1-3/4" | 2-1/4" | 1/4" | N/A |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Versilon™ C-219-A Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
