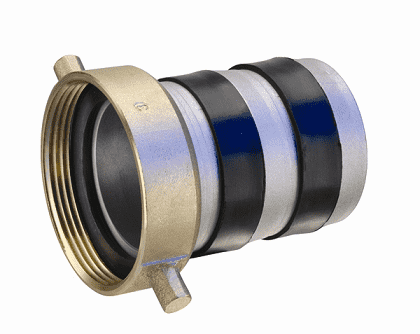

ABF-LF300 by Kuriyama | Pin Lug 3" Hose Shank with Brass Swivel Nut 3" Female NPSM Thread | Aluminum

ABF-LF300 by Kuriyama | Pin Lug 3" Hose Shank with Brass Swivel Nut 3" Female NPSM Thread | Aluminum

Sale price$32.98

Kuriyama Couplings™ - EZ-Seal Leak Resistant Couplings - Aluminum Pin Lug Hose Shank with Brass Swivel Nut Female NPSM Threads

Buy More, Save More!
Quantity Price Each
10–39 $31.00
40–79 $28.03
80+ $24.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Hose Barb
  • 3in Male NPSM
Material(s):
  • Aluminum
  • Brass
Applications:
  • Agriculture, Chemicals, Petroleum, Construction, Material Handling
  • Ideally Suited for Layflat Hoses
  • For use with Kuriyama Hoses
Features:
  • Rubber seals - Help prevent leakage.
  • Interchangeability - Part C & E conform to Mil Spec A-A-59326.
  • Versatile - Suitable for use with other PVC and Rubber Hoses.
  • Note: To insure proper sealing attach band clamps directly over rubber seals.
Materials:
  • Aluminum; ASTM B85 Grade 383
Part Number Size Weight (Lbs.)
ABF-LF150 1-1/2 x 1-1/2" 0.37 lbs
ABF-LF200 2" x 2" 0.58 lbs.
ABF-LF300 3" x 3" 1.16 lbs.
ABF-LF400 4" x 4" 2.01 lbs.
