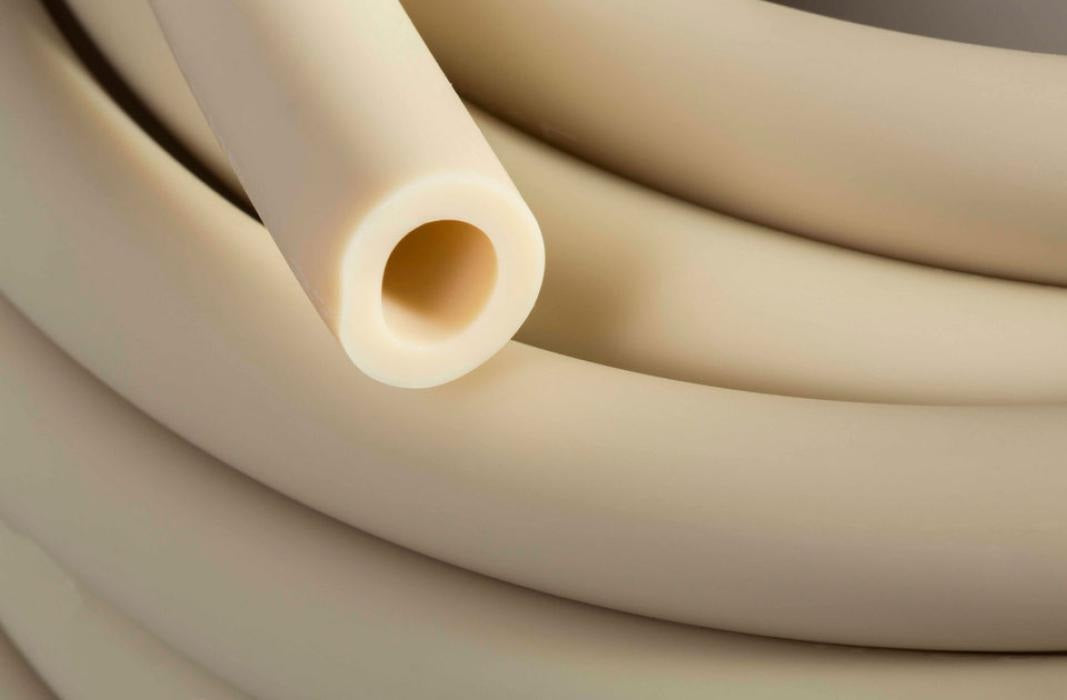

AAL00029 Tygon® by Saint Gobain | A-60-F | Food & Beverage Process Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length
Package Quantity: 50 FT
Tygon® A-60-F | Food & Beverage Process Tubing
This high-performance tubing can withstand extreme temperatures from -75°F to 275°F without cracking or deteriorating, and is robust enough for clean-in-place and steam-in-place cleaning and sterilization systems. Tygon A-60-F is compatible with virtually all commercial cleaners and sanitizers, and can be repeatedly autoclaved for up to five cycles without affecting its overall service life.
1
What is this product used for?
- Food and beverage dispensing
2
What are the key specifications?
Thermoplastic Elastomer
Thermoplastic Elastomer
None
Cream
275°F (135°C)
-75°F (-60°C)
FDA 21 CFR, 177.2600 criteria
NSF®-51
3-A
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature resistant from -75°F to 275°F.
- Ozone and UV light resistant.
- Repeatedly autoclavable.
- Chemically compatible with a wide range of cleaners.
- Compatible with virtually all common sanitizers and cleaners.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Max. Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AAL00003 | 1/16" | 3/16" | 1/16" | 1/4" | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 8 PSI | 29.9 in. Hg | 23.0 in. Hg | 50ft |
| AAL00017 | 1/4" | 3/8" | 1/16" | 1-1/4" | 10 PSI | 6 PSI | 26.0 in. Hg | 13.0 in. Hg | 50ft |
| AAL00019 | 1/4" | 1/2" | 1/8" | 3/4" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 8 PSI | 5 PSI | 17.0 in. Hg | 8.0 in. Hg | 50ft |
| AAL00027 | 3/8" | 1/2" | 1/16" | 2-1/4" | 7 PSI | 4 PSI | 11.0 in. Hg | 5.0 in. Hg | 50ft |
| AAL00029 | 3/8" | 5/8" | 1/8" | 1-1/4" | 13 PSI | 8 PSI | 29.9 in. Hg | 23.0 in. Hg | 50ft |
| AAL00046 | 5/8" | 7/8" | 1/8" | 3-1/4" | 8 PSI | 5 PSI | 17.0 in. Hg | 8.0 in. Hg | 50ft |
| AAL00053 | 3/4" | 1" | 1/8" | 4" | 7 PSI | 4 PSI | 11.0 in. Hg | 5.0 in. Hg | 50ft |
| AAL00038 | 1/2" | 3/4" | 1/8" | 2" | 10 PSI | 6 PSI | 26.0 in. Hg | 13.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A-60-F Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Additional Product Data:
