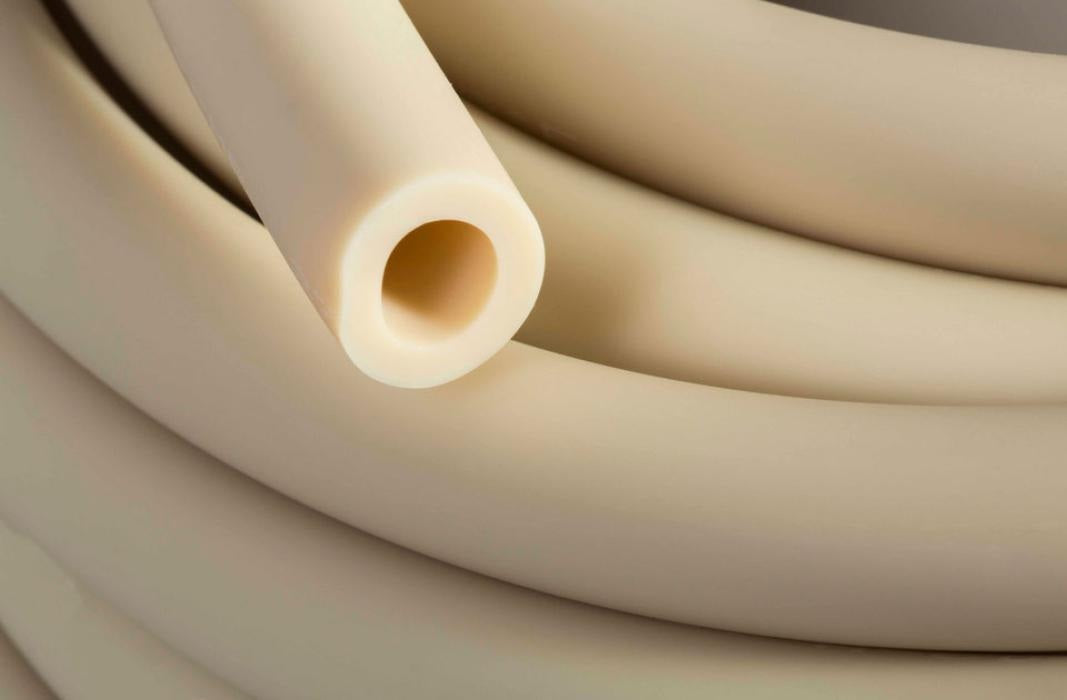

AAL00012 Tygon® by Saint Gobain | A-60-F | Food & Beverage Process Tubing | 3/16" ID x 5/16" OD x 1/16" Wall | 50' Package Length
Saint Gobain
Tygon® A-60-F | Food & Beverage Process Tubing
Tygon® A-60-F tubing from Saint-Gobain is specially designed for peristaltic pumps used in dispensing equipment. It is extremely flexible, resists kinks, retains its shape, and can be easily installed, making it the best choice for demanding food and beverage pumping applications.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $75.50 |
| 20–59 | $68.27 |
| 60+ | $64.26 |
Tygon® A-60-F | Food & Beverage Process Tubing
This high-performance tubing can withstand extreme temperatures from -75°F to 275°F without cracking or deteriorating, and is robust enough for clean-in-place and steam-in-place cleaning and sterilization systems. Tygon A-60-F is compatible with virtually all commercial cleaners and sanitizers, and can be repeatedly autoclaved for up to five cycles without affecting its overall service life.
1
What is this product used for?
- Food and beverage dispensing
2
What are the key specifications?
Thermoplastic Elastomer
Thermoplastic Elastomer
None
Cream
275°F (135°C)
-75°F (-60°C)
FDA 21 CFR, 177.2600 criteria
NSF®-51
3-A
Not intended as an implant material!
3
What are the main product features?
- Long flex life in peristaltic pumps.
- Temperature resistant from -75°F to 275°F.
- Ozone and UV light resistant.
- Repeatedly autoclavable.
- Chemically compatible with a wide range of cleaners.
- Compatible with virtually all common sanitizers and cleaners.
4
Which sizes or configurations are available?
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Max. Working Pressure at 180 deg. F (PSI) |
Vacuum Rating at 73 deg. F (in. Hg) |
Vacuum Rating at 180 deg. F (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|---|---|
| AAL00003 | 1/16" | 3/16" | 1/16" | 1/4" | 34 PSI | 21 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00007 | 1/8" | 1/4" | 1/16" | 1/2" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00012 | 3/16" | 5/16" | 1/16" | 3/4" | 13 PSI | 8 PSI | 29.9 in. Hg | 23.0 in. Hg | 50ft |
| AAL00017 | 1/4" | 3/8" | 1/16" | 1-1/4" | 10 PSI | 6 PSI | 26.0 in. Hg | 13.0 in. Hg | 50ft |
| AAL00019 | 1/4" | 1/2" | 1/8" | 3/4" | 19 PSI | 12 PSI | 29.9 in. Hg | 29.9 in. Hg | 50ft |
| AAL00022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 8 PSI | 5 PSI | 17.0 in. Hg | 8.0 in. Hg | 50ft |
| AAL00027 | 3/8" | 1/2" | 1/16" | 2-1/4" | 7 PSI | 4 PSI | 11.0 in. Hg | 5.0 in. Hg | 50ft |
| AAL00029 | 3/8" | 5/8" | 1/8" | 1-1/4" | 13 PSI | 8 PSI | 29.9 in. Hg | 23.0 in. Hg | 50ft |
| AAL00046 | 5/8" | 7/8" | 1/8" | 3-1/4" | 8 PSI | 5 PSI | 17.0 in. Hg | 8.0 in. Hg | 50ft |
| AAL00053 | 3/4" | 1" | 1/8" | 4" | 7 PSI | 4 PSI | 11.0 in. Hg | 5.0 in. Hg | 50ft |
| AAL00038 | 1/2" | 3/4" | 1/8" | 2" | 10 PSI | 6 PSI | 26.0 in. Hg | 13.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® A-60-F Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
