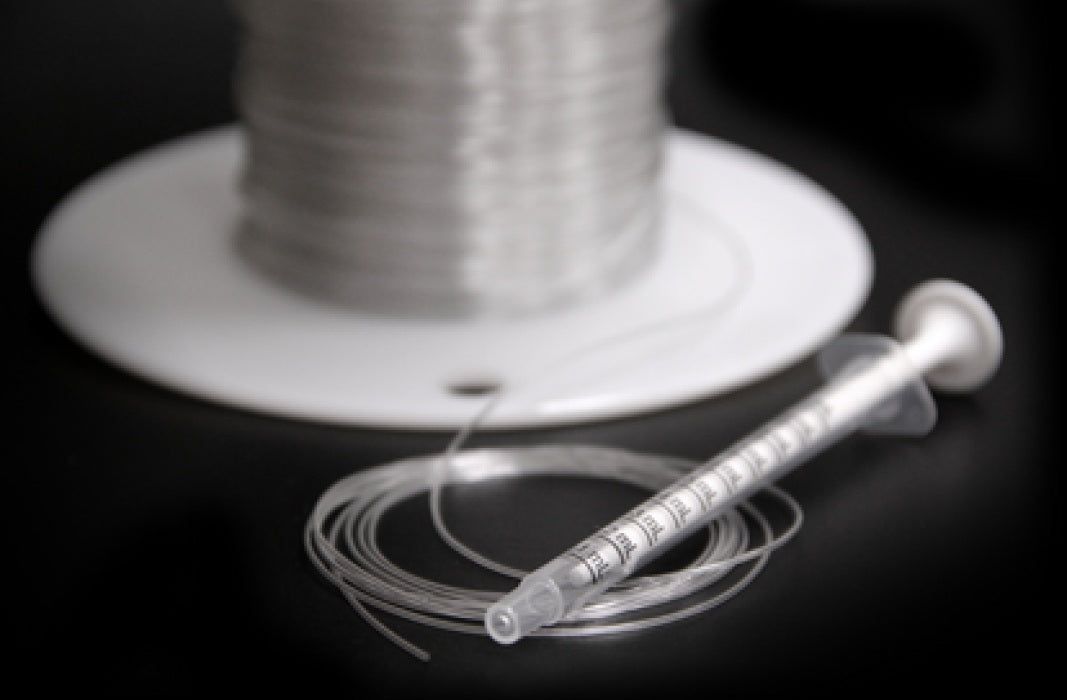

AAD04091 Tygon® by Saint Gobain | ND 100-80 | Non-DEHP Medical Device Tubing | .010 ID x .030 OD x .010" Wall | 500' Package Length
Package Quantity: 500 FT
Tygon® ND 100-80 | Non-DEHP Medical Device Tubing
Consistent with many medical tubing market requirements, Tygon ND 100-80 can be effectively bonded/welded using the following methods: heat, electronic (RF)/ultrasonic, solvent and adhesive. This thermoplastic tubing has a durometer rating of 80 Shore A, which is relatively high compared to other Tygon ND offerings. The higher durometer rating enables manufacturing at small diameters.
1
What is this product used for?
- Cannulas or protective sheaths
- Diagnostic equipment
- Drug delivery
- External drainage system
- Pressurized fluid transfer
2
What are the key specifications?
Thermoplastic Material
Thermoplastic Material
None
Clear
185°F (85°C)
-31°F (-35°C)
Meets the requirements of Biological Test for Plastics Class VI, as described in USP <88> (2017, fluid path). REACH compliant.
Not intended as an implant material!
3
What are the main product features?
- Clear for easy visualization of fluid flow.
- Kink resistant.
- High pressure and vacuum resistance.
- USP <88>, Class VI.
- Regular evaluations to ensure REACH compliance.
4
Which sizes or configurations are available?
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® ND 100-80 Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Additional Product Data:
