AAA00029 Tygon® by Saint Gobain | B-44-4X | Food, Milk and Dairy Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length
Saint Gobain

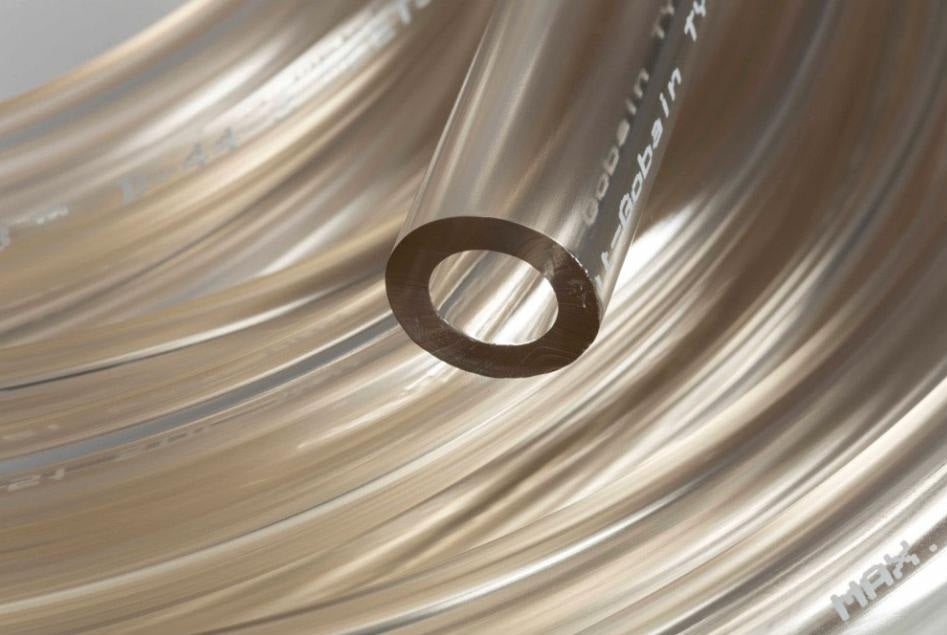

Tygon® B-44-4X | Food, Milk and Dairy Tubing
Tygon® B-44-4X is a flexible, crystal-clear food-grade tubing that resists harsh cleaning chemicals, minimizes bacterial growth, and is ideal for sanitary food and beverage processing and dispensing applications.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $198.42 |
| 20–59 | $179.43 |
| 60+ | $168.87 |
Tygon® B-44-4X Tubing
Producers of food, milk and dairy products insist upon Tygon® B-44-4X tubing for dependable performance in countless filling, draining, transfer and processing applications. Its smooth, non-porous bore inhibits particle entrapment, promoting a sanitary fluid path by minimizing potential for bacterial growth. It has outstanding resistance to harsh alkaline cleaners and is equally unaffected by commonly used sanitizers.
1
What is this product used for?
- Aseptic filling
- Condiment dispensing
- Dairy processing
- Vitamin and flavor concentrate systems
- Soft-serve dispensing
2
What are the key specifications?
N/A
N/A
None
Clear
165°F (74°C)
-49°F (-45°C)
- NSF-51 & NSF-61
- Japan Food Sanitation Law #370/1959
- Japan MHLW Notification No. 370, Section 3-D
- EU Food Contact Compliant (EU 10/2011)
- 3-A & FDA
- Does not contain chemicals listed in California's Proposition 65
Not intended as an implant material!
3
What are the main product features?
- Smooth, non-porous bore will not trap particulates or promote bacterial growth.
- Resistant to harsh alkaline cleaners and sanitizers.
- Excellent alternative to rigid piping systems.
- Contains no BPA or phthalates.
4
Which sizes or configurations are available?
| Part Number |
Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Vacuum Rating (in. Hg) |
Length |
|---|---|---|---|---|---|---|---|
| AAA00001 | 1/32" | 3/32" | 1/32" | 1/8" | 100 PSI | 29.9 in. Hg | 50ft |
| AAA00002 | 1/16" | 1/8" | 1/32" | 1/4" | 60 PSI | 29.9 in. Hg | 50ft |
| AAA00003 | 1/16" | 3/16" | 1/16" | 1/8" | 100 PSI | 29.9 in. Hg | 50ft |
| AAA00004 | 3/32" | 5/32" | 1/32" | 1/2" | 43 PSI | 29.9 in. Hg | 50ft |
| AAA00006 | 1/8" | 3/16" | 1/32" | 1/2" | 34 PSI | 25.0 in. Hg | 50ft |
| AAA00007 | 1/8" | 1/4" | 1/16" | 3/8" | 60 PSI | 29.9 in. Hg | 50ft |
| AAA00009 | 5/32" | 7/32" | 1/32" | 3/4" | 28 PSI | 16.0 in. Hg | 50ft |
| AAA00010 | 5/32" | 9/32" | 1/16" | 1/2" | 50 PSI | 29.9 in. Hg | 50ft |
| AAA00011 | 3/16" | 1/4" | 1/32" | 1" | 25 PSI | 11.0 in. Hg | 50ft |
| AAA00012 | 3/16" | 5/16" | 1/16" | 5/8" | 43 PSI | 29.9 in. Hg | 50ft |
| AAA00017 | 1/4" | 3/8" | 1/16" | 1" | 34 PSI | 25.0 in. Hg | 50ft |
| AAA00018 | 1/4" | 7/16" | 3/32" | 3/4" | 47 PSI | 29.9 in. Hg | 50ft |
| AAA00019 | 1/4" | 1/2" | 1/8" | 5/8" | 60 PSI | 29.9 in. Hg | 50ft |
| AAA00022 | 5/16" | 7/16" | 1/16" | 1-3/8" | 28 PSI | 16.0 in. Hg | 50ft |
| AAA00023 | 5/16" | 1/2" | 3/32" | 1" | 40 PSI | 29.9 in. Hg | 50ft |
| AAA00024 | 5/16" | 9/16" | 1/8" | 7/8" | 50 PSI | 29.9 in. Hg | 50ft |
| AAA00027 | 3/8" | 1/2" | 1/16" | 1-3/4" | 25 PSI | 11.0 in. Hg | 50ft |
| AAA00028 | 3/8" | 9/16" | 3/32" | 1-3/8" | 34 PSI | 25.0 in. Hg | 50ft |
| AAA00029 | 3/8" | 5/8" | 1/8" | 1-1/8" | 44 PSI | 29.9 in. Hg | 50ft |
| AAA00036 | 1/2" | 5/8" | 1/16" | 2-7/8" | 19 PSI | 6.0 in. Hg | 50ft |
| AAA00037 | 1/2" | 11/16" | 3/32" | 2-1/8" | 27 PSI | 14.0 in. Hg | 50ft |
| AAA00038 | 1/2" | 3/4" | 1/8" | 1-3/4" | 34 PSI | 25.0 in. Hg | 50ft |
| AAA00039 | 1/2" | 13/16" | 5/32" | 1-1/2" | 40 PSI | 29.9 in. Hg | 50ft |
| AAA00045 | 5/8" | 13/16" | 3/32" | 3" | 23 PSI | 9.0 in. Hg | 50ft |
| AAA00046 | 5/8" | 7/8" | 1/8" | 2-3/8" | 29 PSI | 16.0 in. Hg | 50ft |
| AAA00047 | 5/8" | 5/16" | 5/32" | 2" | 35 PSI | 26.0 in. Hg | 50ft |
| AAA00053 | 3/4" | 1" | 1/8" | 3-1/4" | 25 PSI | 11.0 in. Hg | 50ft |
| AAA00054 | 3/4" | 1-1/16" | 5/32" | 2-3/4" | 30 PSI | 18.0 in. Hg | 50ft |
| AAA00055 | 3/4" | 1-1/8" | 3/16" | 2-3/8" | 34 PSI | 26.0 in. Hg | 50ft |
| AAA00057 | 3/4" | 1-1/4" | 1/4" | 2" | 43 PSI | 29.9 in. Hg | 50ft |
| AAA00059 | 7/8" | 1-1/8" | 1/8" | 4-1/8" | 22 PSI | 8.0 in. Hg | 50ft |
| AAA00062 | 1" | 1-1/4" | 1/8" | 5-1/8" | 20 PSI | 6.0 in. Hg | 50ft |
| AAA00063 | 1" | 1-5/16" | 5/32" | 4-3/8" | 24 PSI | 10 in. Hg | 50ft |
| AAA00064 | 1" | 1-3/8" | 3/16" | 3-3/4" | 27 PSI | 14.0 in. Hg | 50ft |
| AAA00065 | 1" | 1-1/2" | 1/4" | 3" | 34 PSI | 25.0 in. Hg | 50ft |
| AAA00067 | 1-1/8" | 1-3/8" | 1/8" | 6-1/4" | 18 PSI | 5.0 in. Hg | 50ft |
| AAA00070 | 1-1/4" | 1-5/8" | 3/16" | 5-1/2" | 23 PSI | 9.0 in. Hg | 50ft |
| AAA00074 | 1-1/2" | 2" | 1/4" | 5-7/8" | 25 PSI | 11.0 in. Hg | 50ft |
| AAA00078 | 2" | 2-1/2" | 1/4" | 9-3/8" | 19 PSI | 6.0 in. Hg | 50ft |
How is this product sold?
No by the foot sales. This is a Packaged Length product.
6
Where can I find product documents?
Saint Gobain Tygon® B-44-4X Data Sheet
Consult product literature, manufacturer documentation, or supporting documents for additional information.
Product Data:
