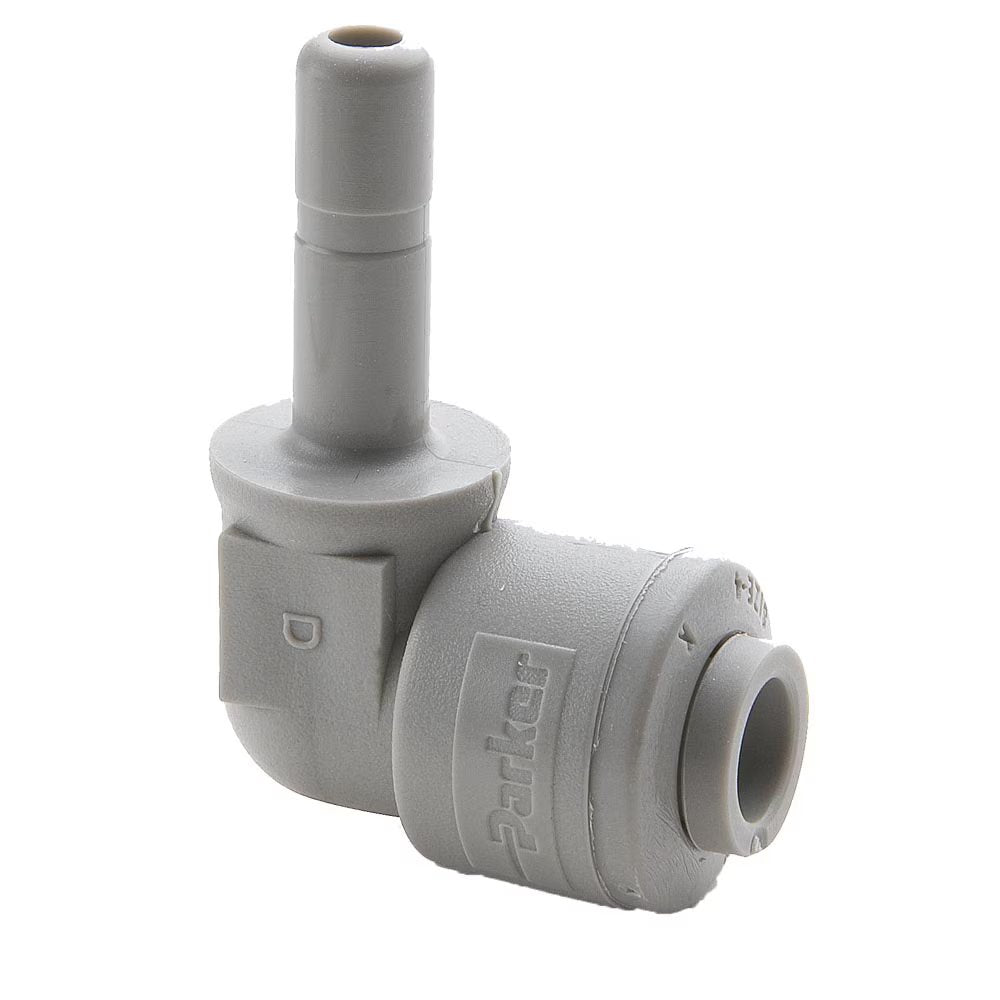

A5TEU5-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 5/16" Push-to-Connect x 5/16" Tube Stem | 90° Elbow | Gray | Acetal

A5TEU5-MG by Parker | TrueSeal™ Tube to Tube Union Fitting | 5/16" Push-to-Connect x 5/16" Tube Stem | 90° Elbow | Gray | Acetal

Sale price$11.08

by Parker Hannifin
TrueSeal™ Fittings:TEU - Tube Elbow Union
Buy More, Save More!
Quantity Price Each
20–39 $10.42
40–79 $9.42
80+ $8.31
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • TEU Series
Shape:

90° Elbow
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. Tube Stem O.D. M N Flow Diameter (D)
A4TEU4-MG PPB4TEU4-MG PP4TEU4 FB4TEU4-HBLK 1/4" 1/4" .84" 1.21" .125"
A4TEU6-MG - - FB4TEU6-HBLK 1/4" 3/8" .84" 1.35" .125"
A5TEU5-MG - - FB5TEU5-HBLK 5/16" 5/16" 1.03" 1.40" .188"
A6TEU4-MG - - FB6TEU4-HBLK 3/8" 1/4" 1.03" 1.29" .125"
A6TEU6-MG - PP6TEU6 FB6TEU6-HBLK 3/8" 3/8" 1.03" 1.48" .250"
A8TEU8-MG PPB8TEU8-MG PP8TEU8 FB8TEU8-HBLK 1/2" 1/2" 1.21" 1.64" .380"
