A47-16x16 by Couplamatic | A Series Coupling | 1" Hose ID Split Flange | Code 61 | Straight

A47-16x16 by Couplamatic | A Series Coupling | 1" Hose ID Split Flange | Code 61 | Straight

Sale price$36.15

Couplamatic Systems Inc.
A Series - Code 61 Split Flange - Straight
Buy More, Save More!
Quantity Price Each
10–39 $33.98
40–79 $30.73
80+ $27.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

Straight

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

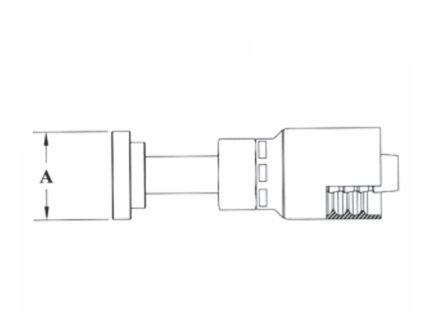

Part Number Hose I.D. Flange Size A-Dia Inches Cross Reference Part Numbers
Weatherhead Z
A47-12x12 3/4" 3/4" 1.50" 12Z-G12
A47-16x16 1" 1" 1.75" 16Z-G16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
