A46-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x G-3/8-19 Thread 60° Cone Female Swivel | 3/8" BSPP | 90° Elbow

A46-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x G-3/8-19 Thread 60° Cone Female Swivel | 3/8" BSPP | 90° Elbow

Sale price$25.86

Couplamatic Systems Inc.
A Series - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $24.31
40–79 $21.98
80+ $19.40
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 3/8in Female BSPP
  • 3/8in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.

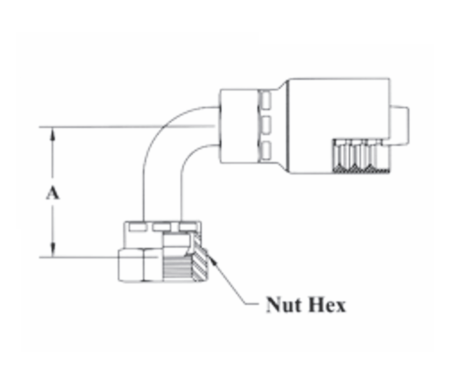

Part Number Hose ID BSPP Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A46-4x4 1/4" 1/4" G-1/4-19 1.50" 3/4" 1A4BFB4 04Z-74P
A46-6x6 3/8" 3/8" G-3/8-19 1.60" 7/8" 1A6BFB6 06Z-76P
A46-8x8 1/2" 1/2" G-1/2-14 1.89" 1" 1A8BFB8 08Z-78P
A46-12x12 3/4" 3/4" G-3/4-14 2.55" 1-1/4" 1A12BFB12 12Z-82P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
