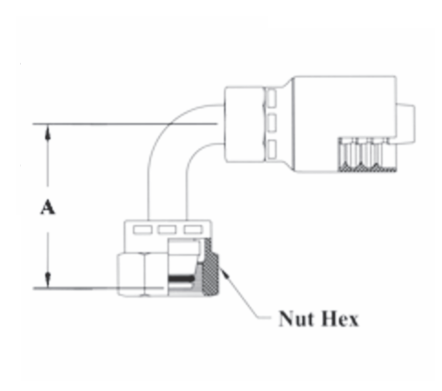

A45 A Series — DIN Heavy 24° Seat, Female Swivel, 90° Elbow

A45 is the DIN Heavy 24° Seat, Female Swivel, 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • O-Ring Included
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?
Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A45-4x10 1/4" 10mm M18x1.5 1.50" 7/8" 1A6DSB4 04Z-60E
A45-6x12 3/8" 12mm M20x1.5 1.95" 1" 1A8DSB6 06Z-62E
A45-8x16 1/2" 16mm M24x1.5 2.05" 1-1/8" 1A12DSB8 08Z-66E
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • S16 Female DIN
  • 1/2in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Explore Couplamatic Systems Inc
