A44-8x15 by Couplamatic | A Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | 90° Elbow

A44-8x15 by Couplamatic | A Series Coupling | 1/2" Hose ID x M22x1.5 Thread DIN Light Universal Seat Female Swivel | 90° Elbow

Sale price$31.11

Couplamatic Systems Inc.
A Series - DIN Light Universal Seat - Female Swivel 90° Bend
Buy More, Save More!
Quantity Price Each
10–39 $29.24
40–79 $26.44
80+ $23.33
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • L15 Female DIN
  • 1/2in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

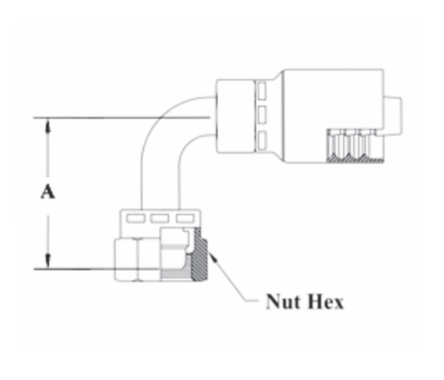

Part Number Hose ID Tube Size Thread Size A - Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A44-4x8 1/4" 8mm M14x1.5 1.48" 11/16" 1A6DLB4 04Z-58D
A44-6x10 3/8" 10mm M16x1.5 1.65" 3/4" 1A8DLB6 06Z-60D
A44-6x12 3/8" 12mm M18x1.5 1.65" 7/8" 1A10DLB6 06Z-62D
A44-8x15 1/2" 15mm M22x1.5 1.93" 1-1/16" 1A12DLB8 08Z-65D
A44-10x18 5/8" 18mm M26x1.5 2.31" 1-1/4" - 10Z-68D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
